The ancient Greek philosopher, Aristotle (384-322 BC), had an interesting explanation of gravity. In Aristotelian physics, all things were composed of the four essential elements, Earth (Γη), Air (ʾΑηρ), Fire (Πυρ), and Water (ʿΥδωρ). In the absence of any holding force, these elements had a tendency to go to their natural place. The natural place of the Earth element is the center of the universe. According to his geocentric cosmology, this was the center of the Earth; so, matter falls down. Likewise, the lightest elements, air and fire, move away from the geocenter to their natural places in the heavens.

The four classic elements, and the four qualities of matter.

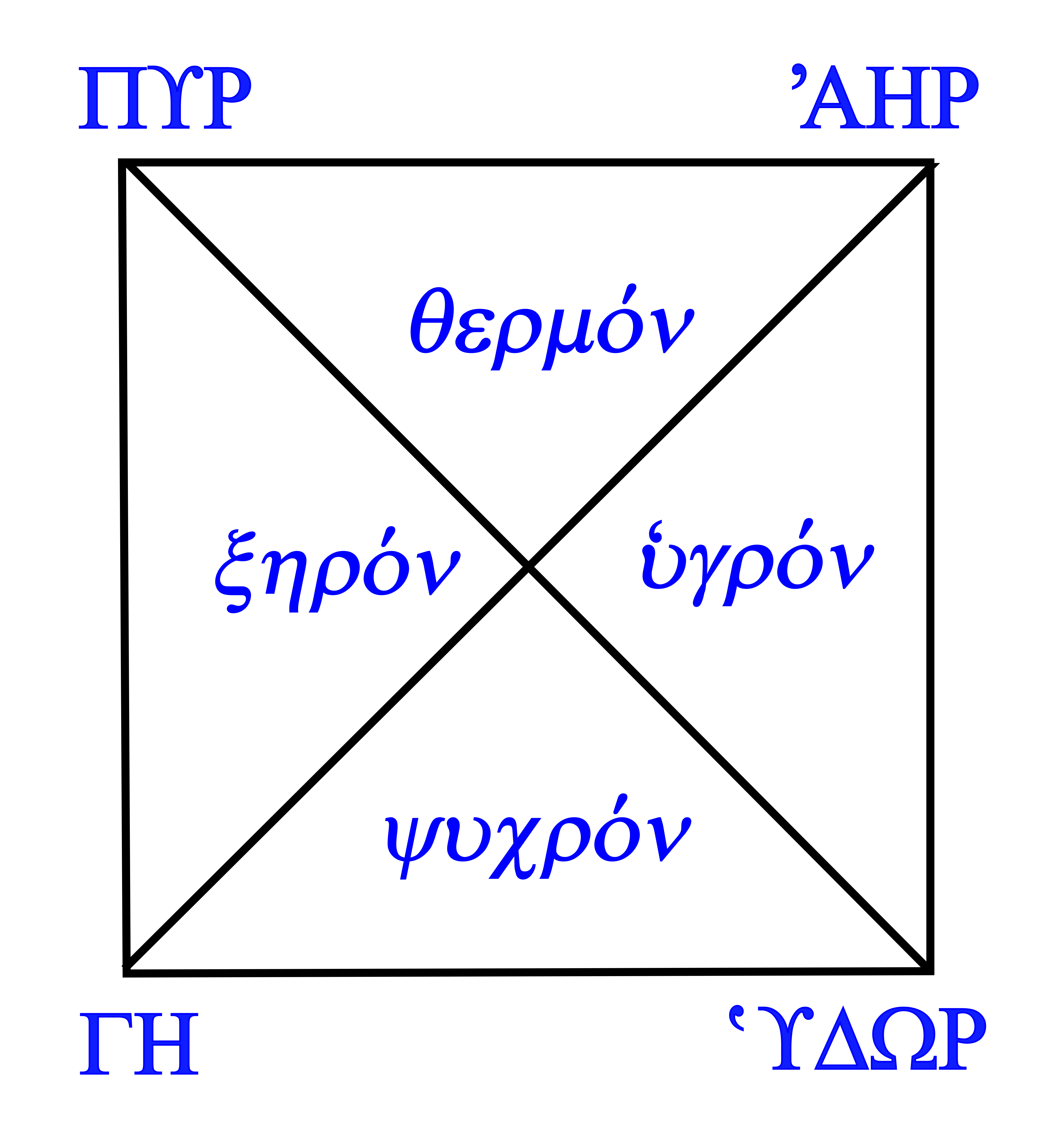

The four classical elements, Earth (ΓΗ), Air (ʾΑΗΡ), Fire (ΠΥΡ), and Water (ʿΥΔΩΡ).

Aristotle, in his On Generation and Corruption, associated each of the four elements with two sensible qualities; namely, Dry (ξηρον), Wet (ʿυγρον), Hot (θερμον), and Cold (ψυχρον).

Earth is both cold and dry, Air is both hot and wet, Fire is both hot and dry, and water is both cold and wet.

(Created using Inkscape. Click for larger image.)

The particular physical properties of a composite material, including its gravitational attraction, derive from the proportion of these four elements in its composition. Aristotle believed in the logical idea that heavier objects fall more rapidly. Galileo's experiments demonstrated that the mass of an object did not affect its gravitational acceleration towards Earth, and Isaac Newton discovered his inverse-square law describing gravitational attraction. I should emphasize that Newton described gravity, he didn't explain gravity in the sense that Aristotle did. As Newton himself wrote in the 2nd edition of the Principia, hypotheses non fingo (I frame no hypotheses).

Albert Einstein's 1913 theory of general relativity actually explained gravity as the curvature of four dimensional space-time being proportional to an object's mass.[1] Theory is one thing, but every scientist desires that his theory be confirmed by experiment. Einstein proposed three experimental tests of general relativity; namely, the perihelion precession of Mercury's orbit, the deflection of light by the Sun, and the gravitational redshift of light. All of these were difficult measurements. The predicted advance of the perihelion of Mercury was 43.03 arcsec/century, and the bending of light around the Sun was predicted to be 1.75 arcsec.[2]

Positive image of the Solar eclipse of May 29, 1919, a measurement by Arthur Eddington (1882-1944) that verified general relativity.[3]

Eddington needed to wait until the end of the World War I to make this observation. He traveled to the island of Príncipe at the west coast of Africa and photographed this solar eclipse and the surrounding stars in the Hyades cluster and the constellation, Taurus.

This was an observation that made front page headlines in newspapers.[4]

(Wikimedia Commons image from ref. 3.[3] Click for larger image.)

As I've written time and again, science advances in step with advances in scientific instrumentation. This concept is especially true for observational astronomy as it advanced from Galileo's telescope to today's James Webb Space Telescope. When the gravity well is a galaxy with more than a trillion times the mass of the Sun, there's enough bending of light to create multiple images of background objects by gravitational lensing. Gravitational lensing was first observed in 1979 with the discovery of identical quasi-stellar objects, so named since they appeared as mysterious point objects of high luminosity, but are now known to be active galactic nuclei.[5] This Twin Quasar SBS 0957+561 is actually a single quasar whose light was bent into two images by a galaxy between it and the Earth.

An example of gravitational lensing producing a nearly contiguous ring of light.

In this case, the gravity of LRG 3-757, a luminous red galaxy, has lensed the light from a more distant blue galaxy. The blue galaxy, LRG 3-757, and Earth are so precisely aligned that a ring results, rather than multiple images.

(Wikimedia Commons image, a portion of a ESA/Hubble & NASA image. Click for larger image.)

Gravitational lensing has a use beyond a proof of general relativity. The Hubble constant, which specifies the rate of universal expansion, has been determined by two principal methods. There's observations of the nearby supernovae. The other is by observation of the cosmic microwave background. These methods give a value of the Hubble constant that differs by about 10%, leading to a problem for cosmology known as the Hubble tension. Gravitational lensing leads to another way to measure this constant. As Patrick Kelly, an assistant professor at the University of Minnesota and lead author of a study on this method,[6-9] explains, "Our research addresses that by using an independent, completely different way to measure the expansion rate of the Universe."[9]

Gravitation lensing will produce multiple images of a supernova, the light from each image traveling to Earth along a different path, so each arrives at a different time.[8] In 1964, Norwegian astronomer, Sjur Refsdal (1935-2009), theorized that this phenomenon could be used to measure the Hubble constant.[7-9] Fifty years later, in December, 2014, the Hubble Space Telescope imaged four lensed images of the same supernova.[8] This supernova (redshift, z = 1.49) is far behind the lensing cluster of galaxies, which itself is distant (z = 0.54).[7] It was predicted that another image would appear, and it did after 376 days.[8]

The gravitationally lensed supernova image. An annotated image appears in ref. 8.[8]

(University of Minnesota image by Patrick Kelly.[9] Click for larger image.)

Says Kelly, "It's advantageous to have a year-long delay, because the value of the Hubble constant is inversely proportional to the time delay."[8] The inferred Hubble constant based on this delay was lower than that calculated from observations of Cepheid variables and on other luminosity distance markers.[8] It was 64.8 (- 4.3 + 4.4) km/sec/megaparsec.[6] The errors relate to the estimate of the path length based on models of the mass distribution of the lensing galaxy, including the contribution from unobservable dark matter.[8] The measurement is at the low end of the Hubble tension range, but the 6% error puts it close to the the other values.[8]

The errors would be reduced by a better model of the mass distribution of the lensing galaxy cluster, something that could be done with the new James Webb Space Telescope.[8] Further examples of this effect would help.[8] As Kelly summarizes,

"Our measurement is in better agreement with the value from the cosmic microwave background, although — given the uncertainties - it does not rule out the measurement from the local distance ladder... If observations of future supernovae that are also gravitationally lensed by clusters yield a similar result, then it would identify an issue with the current supernova value, or our understanding of galaxy-cluster dark matter."[9]

Funding for this research was provided by NASA through the Space Telescope Science Institute, and by the National Science Foundation.[9]
