Odd Neural Networks

July 25, 2022

One of the objects of physics research is to render the invisible, visible Occasionally, this takes some very large and very expensive equipment, such as the 27 kilometer (17 mile) circumference Large Hadron Collider and the $1.4 billion Atacama Large Millimeter Array, the most expensive ground-based telescope in operation. Laboratory physicists also need to see the invisible, and electron microscopes are one obvious equipment example. A lesser known, but more ubiquitous equipment example, is the oscilloscope, a means to visualize electrical signals.

The essential component of an oscilloscope is the cathode-ray tube (CRT), invented in 1897 by German physicist and Nobel Physics Laureate, Karl Ferdinand Braun (1850-1918). The CRT graduated from a laboratory curiosity to a useful laboratory instrument when American electronic engineer, Allen DuMont (1901-1965), began selling a laboratory oscilloscope, called the DuMont Oscillograph, in 1934.

Allen B. Dumont Laboratories Model 208-B Oscillograph.

I was gifted one of these by my undergraduate alma mater as a bonus for acting as a laboratory teaching assistant after these oscilloscopes had been replaced by newer items.

I used it for more than two decades thereafter in my home workshop, and it was still operational when it was discarded as electronic waste in a cleaning frenzy. It would have been nice to have kept it for historical reasons; but, alas, my home has limited space.

(Exhibit at the Putnam Gallery of Harvard University (Cambridge, Massachusetts), a Wikimedia Commons image by Daderot.)

While I used an oscilloscope to visualize signals in the design of audio equipment, such as electronic music synthesizers, the oscilloscope wasn't the first way that this was done. German physicist and musician, Ernst Chladni (1756-1827), found that sand sprinkled on vibrating plates will accumulate in certain areas, forming what are now known as Chladni figures. These acoustic nodes are regions at which vibrations are minimal. While Chladni used a violin bow to excite vibrations in these plates, modern technology allows excitation at various frequencies with a loudspeaker or similar transducer (see figure)

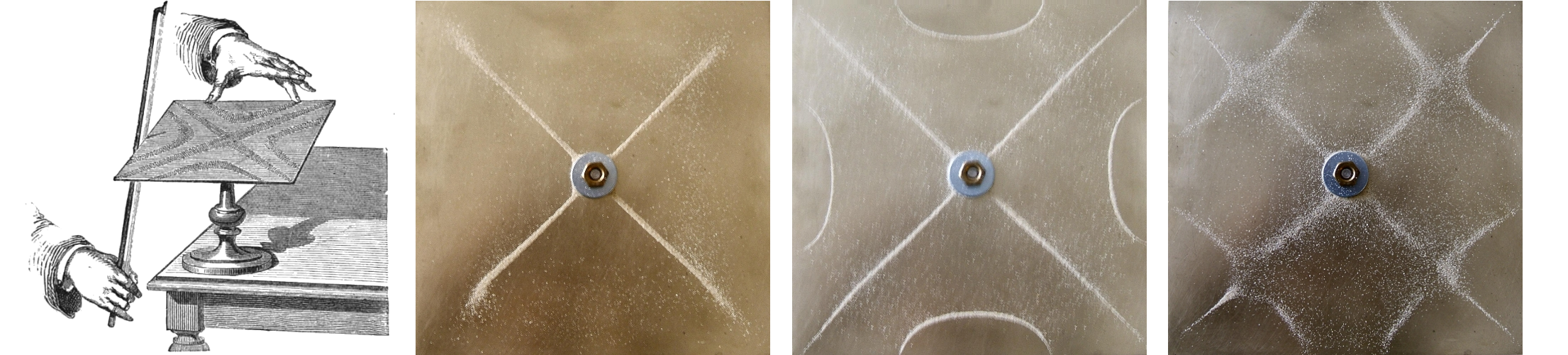

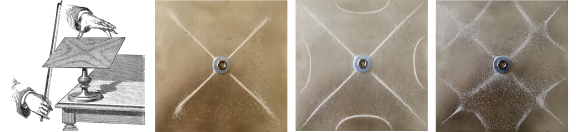

Chladni figures in a square plate at various frequencies.

Left, a drawing showing excitation of vibrations in a Chladni plate using a violin bow. Other images show excitation of plates by an audio transducer at various frequencies. (Left image, a Wikimedia Commons image, figure 12 of page 26 from William Henry Stone, "Elementary Lessons on Sound," Macmillan and Co. (London, 1879). Second, third, and fourth images by Elmar Bergeler, also from Wikimedia Commons. Click for larger image.)

I referenced Chladni's research in my 2012 science fiction novel, Mother Wode.[1]

After the quantum roadblock, physicists had to devise physical shortcuts to achieve rapid computation of important functions. As usual, they were helped by some very old research. Ernest Chladni, a French physicist at the time of Napoleon, had discovered the strange acoustical modes of vibration in irregular plates. He sprinkled sand on thin metal plates, and when they were excited by a violin bow, the sand would settle into a pattern in places where the amplitude of the vibration was small. After a while, the mathematicians got into the act, and they were able to analytically describe how these vibration modes related to the irregular boundaries of plates. In effect, you could simulate a mathematical function by a properly shaped plate. When nanotechnologists were able to make very small plates that would vibrate at high frequencies, Chladni Computation, the rebirth of analog computers, was born. It was most useful for signal analysis and filtering of data streams.

An open access paper published early this year by physicists, computer scientists and engineers at Cornell University (Ithaca, New York) and the NTT Physics and Informatics Laboratories (NTT Research, Inc., Sunnyvale, California) used the acoustic vibration of a Chladni plate in an unusual application - They made an acoustical system that functions like a deep neural network that is somewhat successful at recognizing the digits 0-9.[2-5] They also explored other unconventional neural networks based on broadband optical pulse propagation in quadratic nonlinear media (second-harmonic generating materials), and a transistor circuit with a noisy, nonlinear transient response.[2-4]

Something this strange is not easily done. The research team needed to develop a way to train networks whose physical layers lack any mathematical isomorphism to conventional artificial neural network layers.[2] In the acoustic plate system, a 3.2 centimeter by 3.2 centimeter titanium plate of one millimeter thickness was connected at its center by a long bolt to the voice coil of a commercial high-fidelity loudspeaker with its diaphragm removed.[2] The loudspeaker was driven by an audio amplifier, and the resultant plate oscillations were digitally recorded using a microphone (see figure).[2]

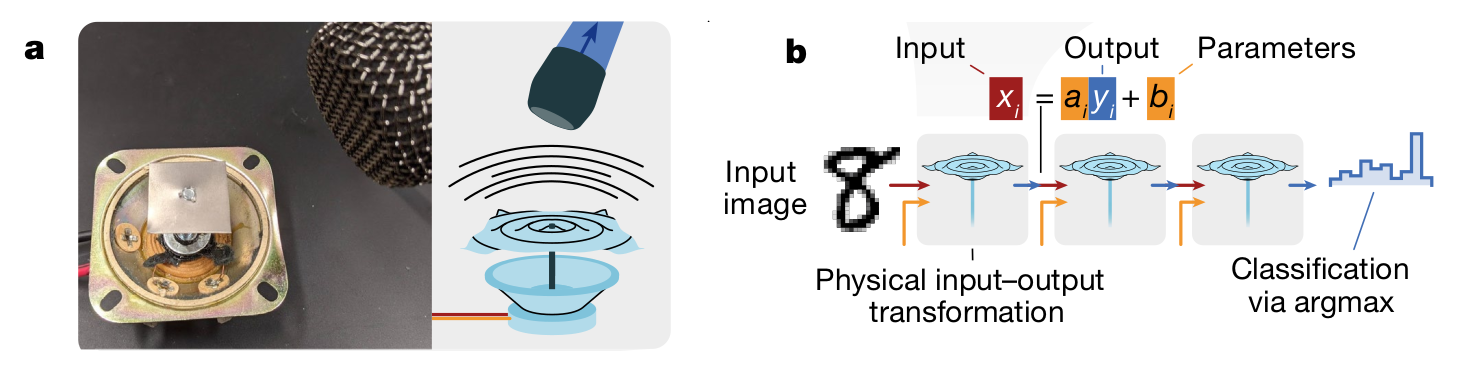

The vibrating plate digit decoder (left), and a schematic diagram of the system operation (right). As you can see, the loudspeaker is sufficiently sized to adequately vibrate the plate with time-dependent forces that encode the input image data and parameters. (Figs. 4a and 4b of ref. 2, licensed under the Creative Commons Attribution 4.0 International License.[2] Click for larger image.)

The plate system was trained using images from the MNIST handwritten digit classification task dataset.[6-7] The titanium plate system was selected because it blends the source and selection vibrations in a nonlinear convoluted way.[4] This odd neural network operates by combining the pixel data of the input image of a handwritten digit with another representing the synaptic weights of the digits 0-9.[4]

As study coauthor and assistant professor of Applied and Engineering Physics at Cornell University, Peter McMahon, is quoted in Quanta Magazine, "Many physical systems can naturally do some computation way more efficiently or faster than a computer can."[5] It seems apparent that deep neural networks act as approximations of smooth mathematical functions with a larger number of layers giving better results because their approximation to the function is closer.[4]

Such physical realizations of neural networks have the inherent problem that their training must be done by digital means.[4] The usual backpropagation method doesn't work, since the physical systems don't run in reverse. As a consequence, training is done using a physical model of the system, and not the system itself.[4] Such training allowed the plate system to classify handwritten digits correctly 87% of the time.[4] The researchers conclude that such physical networks would serve as an adjunct to conventional general-purpose hardware and not a replacement.[2]
