Tikalon Blog by Dev Gualtieri

Dark Energy

February 28, 2022

One fact about the universe is that the better we're equipped to observe it, the larger it gets. We've gone from thinking that our Earth was surrounded by a collection of close crystalline spheres to our present idea that the diameter of the universe is 93 billion light years based on the concept of comoving distance. Today, just as in the past, we have always been certain that we finally understood the universe. Based on this history, should we still insist that our knowledge is complete?

A wood engraving from Camille Flammarion, L'Atmosphère: Météorologie Populaire (Paris, 1888), pp. 163

A wood engraving from page 163 of Camille Flammarion's, L'Atmosphère: Météorologie Populaire (Paris, 1888).

In this image, a pilgrim breaks through a barrier to view the inner workings of the universe that includes a wheel-in-a-wheel mechanism.

Flammarion was an astronomer and a science fiction author who believed that intelligent life existed on Mars. Supporting this assertion was Giovanni Schiaparelli's 1877 discovery of the "Martian canals," which was advanced at that time by American astronomer, Percival Lowell (1855-1916).

(Wikimedia Commons image. Click for larger image.)

This grand question of what the universe is and our relation to it has led to the development of cosmologies in all human cultures. Among these, the thread of cosmological theory in the Western intellectual tradition is the longest cohesive thread of scholarship in this area that extends from the Greek philosophers through more than two millennia to the observational astronomy of today. What follows is a list of important highlights from that history. A very good history of cosmology by James Schombert of the University of Oregon Department of Physics can be found at ref. 1.[1]

•  The Biblical cosmology that predates the Greek philosophers has a flat, circular Earth floating on water and domed by a hemisphere of fixed stars.

•  Around the 4th century BC, Aristotle (384 BC-322 BC) proposed a geocentric universe with a finite, but eternal, universe.

•  A century later, Aristarchus of Samos (c.310-c.230 BC) proposed a heliocentric universe.

•  Around that same time (3rd century BC), Archimedes (c.287 BC-c.212 BC) estimates in The Sand Reckoner that the diameter of the universe is about two light years. I wrote about The Sand Reckoner in an earlier article (The Astronomical Unit, October 3, 2012).

•  In a fast forward to the 2nd century, Ptolemy (c.100-c.170) proposed a geocentric universe in which the Sun, Moon, and planets revolve around the Earth.

•  Nicolaus Copernicus (1473-1543) publishes De revolutionibus orbium coelestium, which describes his heliocentric universe, in 1543.

(Wikimedia Commons image of Nicolaus Copernicus.)

•  In 1610, Johannes Kepler (1571-1630) argues that the dark night sky is evidence for a finite universe. This argument is now known as Olbers' paradox. Edmond Halley (1656-1742), of Halley's comet fame, proposed the same argument in 1720. Heinrich Olbers (1758-1840), for whom Olbers' paradox is named, argued the same in 1826.

•  Erasmus Darwin (1731-1802), grandfather of Charles Darwin (1809-1882), proposed a cyclical, expanding and contracting, universe in 1791.

•  The great distance to the nearest stars was finally measured in 1837 when Friedrich Bessel (1784-1846), Thomas Henderson(1798-1844) and Otto Struve (1819-1905) measured stellar parallax.

•   In 1917, Willem de Sitter (1872-1934) created a relativistic mathematical model for a universe that included a cosmological constant and allowed for expansion.

•  On April 26, 1920, at the Smithsonian Museum of Natural History, Director of the Harvard College Observatory, Harlow Shapley (1885-1972), and Heber Curtis (1872-1942), a past president of the Astronomical Society of the Pacific and director of the Allegheny Observatory debated the nature of spiral nebulae. Curtis thought that the spiral nebulae were large and distant independent galaxies, while Shapley argued that the nebulae were just objects at the periphery of the Milky Way. We now know that Curtis was correct.

•  Vesto Slipher (1875-1969) discovers galactic redshifts in 1922. A year later, Edwin Hubble (1889-1953) measured the distances to the Andromeda Galaxy (M31), the Triangulum Galaxy (M33), and NGC 6822, showing that these were far outside our Milky Way Galaxy. In 1929, Hubble publishes the linear redshift-distance relation that shows the expansion of the universe.

(Wikimedia Commons image of the Andromeda Galaxy by Dutch astrophotographer, Kees Scherer.)

•  In 1933, Fritz Zwicky (1898-1974) found a large quantity of dark matter in the Coma Cluster of galaxies, a discovery that was generally ignored until the 1970s.

•  Although Hermann Bondi (1919-2005), Thomas Gold (1920-2004), and Fred Hoyle (1915-2001) were still arguing for a steady state universe in 1948, that same year, George Gamow (1904-1968) predicted the cosmic microwave background radiation, a consequence of the creation of the universe that's now called the Big Bang. This radiation was accidentally discovered by Bell Labs physicists, Arno Penzias (b. 1933) and Robert Wilson (b. 1936), in 1965.

•  By the 1980s, the idea that the universe was mostly cold dark matter had become respectable.

•  By 1992, the blackbody spectrum of the cosmic microwave background radiation and its very small anisotropy were measured to extreme precision. In 2003, NASA's Wilkinson Microwave Anisotropy Probe continued measurements of the cosmic microwave background radiation to give us its age of 13.7 billion years and other useful data (see figure). The age of the universe from other observations was previously thought to be 18-20 billion years. Whether 13.7 or 20 billion years, these are quite different from Aristotle's eternal universe.

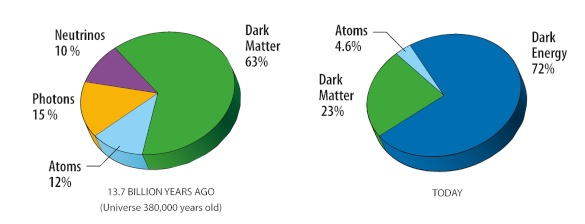

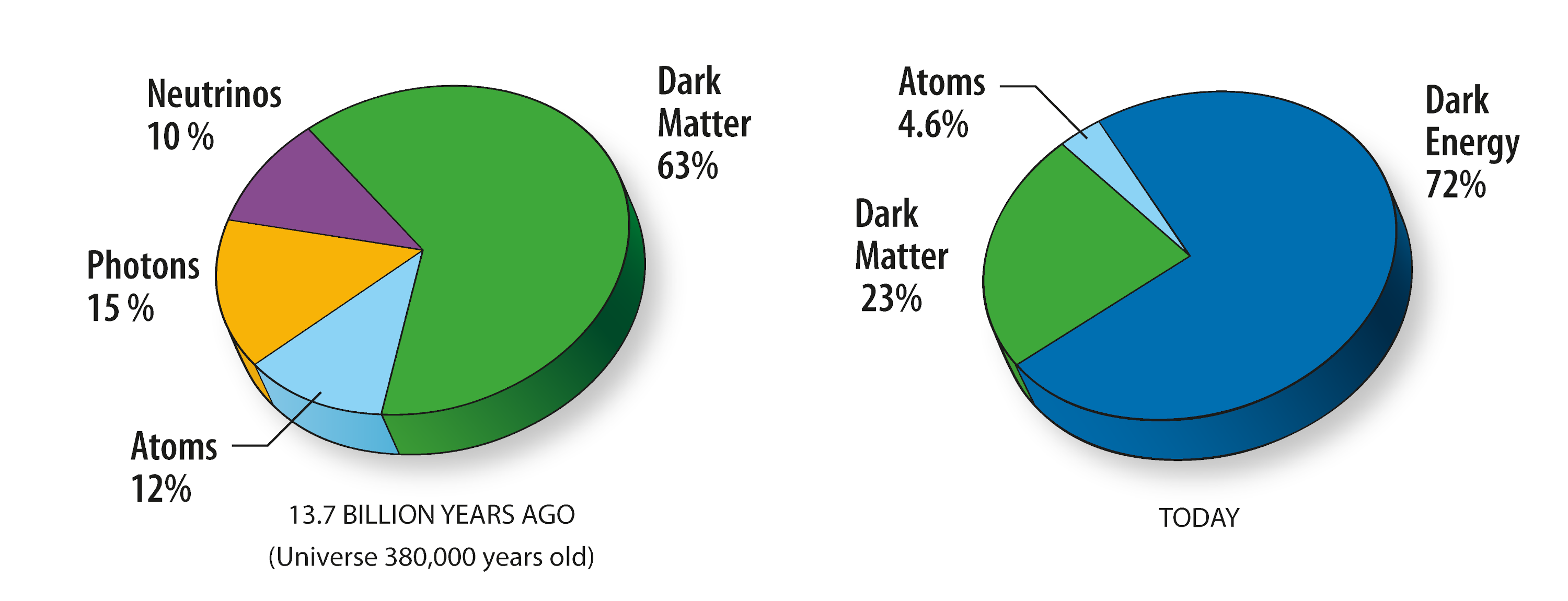

Composition of the universe, at an early epoch, and today. These data are from the Wilkinson Microwave Anisotropy Probe.[2] As a consequence of the limited accuracy for dark matter and dark energy detection, the percentages don't add to 100% (Reformatted NASA image by the WMAP Science Team. Click for larger image.)

One recent newcomer to our understanding of the universe is the existence of dark energy. While dark matter has the affect of pulling the universe together, via gravitation, dark energy is what's responsible for the accelerated expansion of the universe. While dark matter was new to us in the 1930s, it wasn't until a few decades ago that there was general agreement that dark energy exists. This is just more evidence of how elusive our universe has been, and the idea that as we look harder we'll continue to discover more surprises.

The Dark Energy Survey (DES) Collaboration, whose members from 78 research institutions are too numerous to name, have just published their analysis of the large-scale structure of the universe in a field of 5000 deg², which is about one eighth of the entire sky.[3-5] This derives from three years of observations by the Dark Energy Spectroscopic Instrument (DESI) at Kitt Peak, and it creates the largest and most detailed three-dimensional galaxy survey map ever made. This follows a 2018 publication of data from the first year of observations that covered 1514 deg².[5] The new influx of data allows for a two-fold increase in statistical signal-to-noise ratio.

The DES Collaboration used three statistical measurements of galaxies to determine some important cosmological parameters that included the dark matter density and the cosmic expansion rate.[5] Their analysis supports the standard cosmological model known as Lambda-CDM (ΛCDM) to the exclusion of most others, and this allowed calculation of the amplitude of matter clustering and the dark energy equation of state.[5]

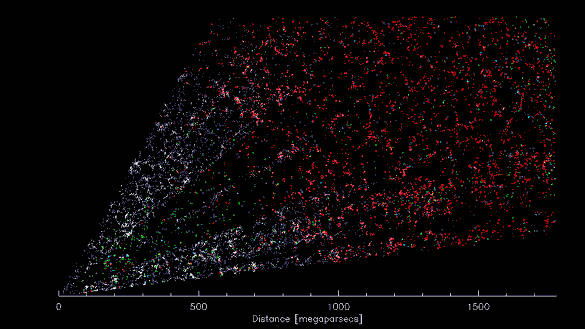

A two-dimensional representation of a three-dimensional DESI scan of a portion of the universe. Earth is at the apex, and the scan extends 5 billion light years and sweeps from the constellation Virgo to Boötes and Corona Borealis. Each colored point represents a galaxy.

(Lawrence Berkeley National Laboratory image by D. Schlegel/Berkeley Lab using data from DESI.)

DESI operates by robotic positioning of 5000 optical fibers to 10 micrometer accuracy with each fiber collecting a detailed optical spectrum.[4] The survey has now cataloged more than 7.5 million galaxies, and it's adding a million more each month. In November 2021 alone, DESI cataloged redshifts from 2.5 million galaxies. By the end of its run in 2026, DESI is expected to have over 35 million galaxies in its catalog.[4] As an additional benefit, DESI has discovered a quasar with a redshift z = 6.53 that existed less than a billion years after the Big Bang (see figure).

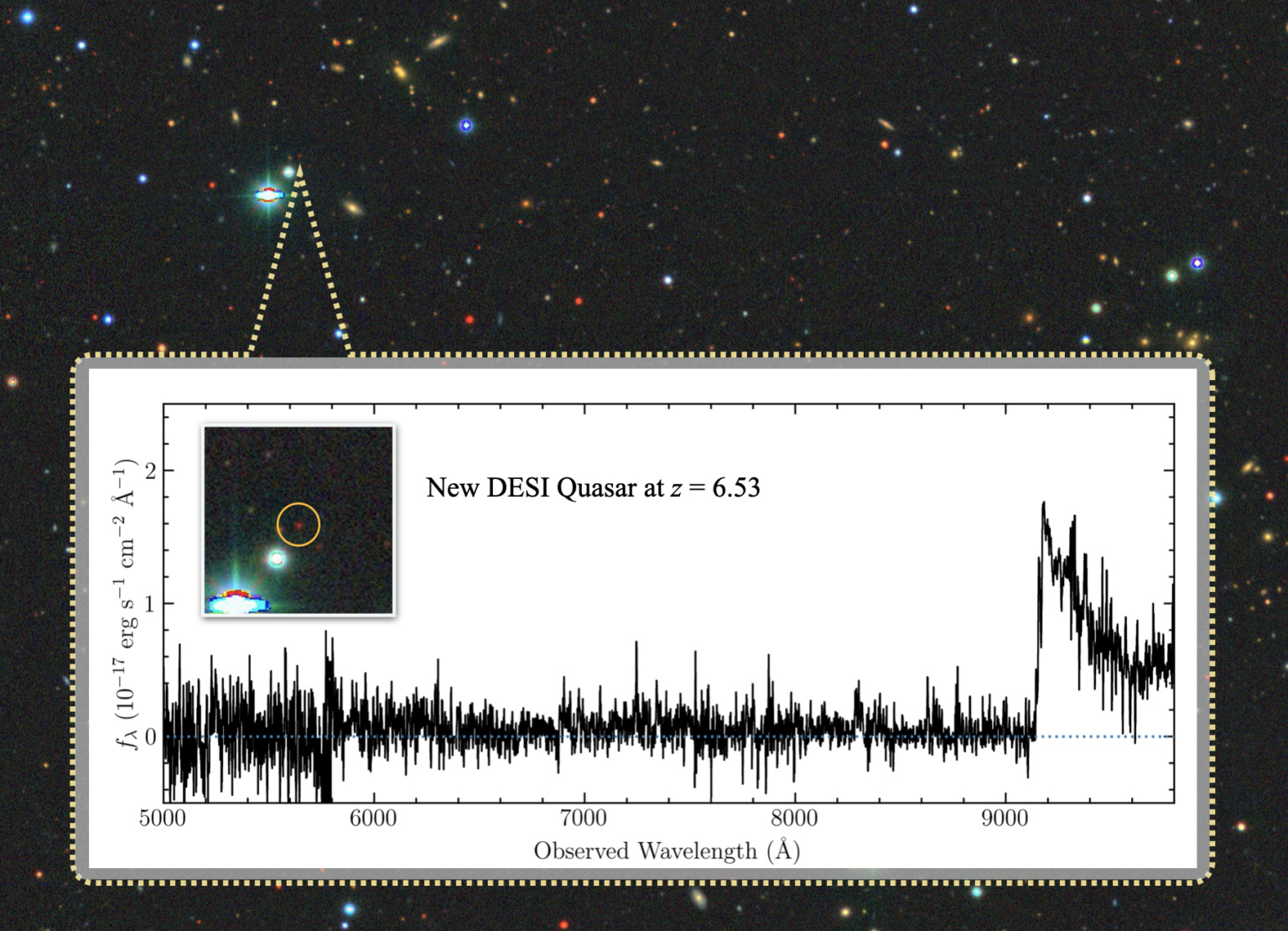

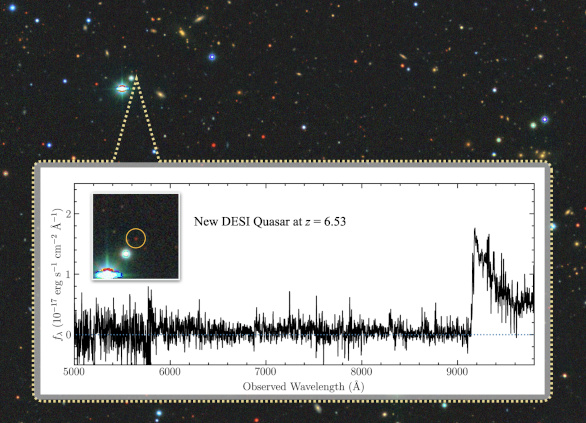

A quasar with a redshift z = 6.53 discovered by DESI. This quasar existed less than a billion years after the Big Bang. For scientists more familiar with nanometers than angstroms, 9000 Å = 900 nm, which places the peak in the near infrared.

(Lawrence Berkeley National Laboratory image by Jinyi Yang, Steward Observatory/University of Arizona. Click for larger image.)

Dark Energy
