Great Circle Routes

June 25, 2018

While the mathematics, science, and grammar I was taught in elementary school were very useful in my life, I often wonder about the utility of some of the other topics in my curriculum. It seemed that a primary purpose in teaching was to keep students continually occupied; and, when you run out of useful things to teach children in a particular age group, you teach some random concept that they might also understand.

One such random piece of knowledge I was taught was the concept that aircraft will travel a minimum distance between points on Earth when they travel what are called great circle routes. It seemed to me that this was one concept that would never be useful unless I became a pilot. In retrospect, great circle routes must have been an attempt to impart some knowledge of spherical geometry to elementary school students. Aircraft routing was one of its few examples, another being sailing ships.

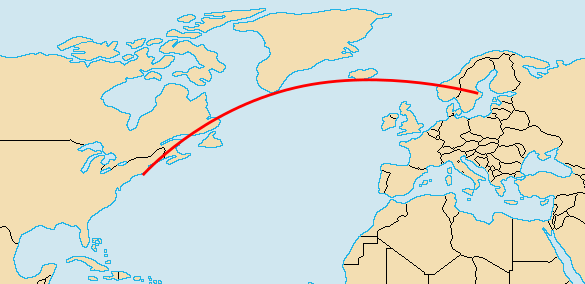

Great circle route between Stockholm and New York City

The great circle route between Stockholm, Sweden, and New York City, as shown on a portion of a Robinson projection map of the world. (Map image by Vardion, via Wikimedia Commons. Great circle route data by Poxnar from his map at Wikimedia Commons. Image created using Inkscape.)

Since great circles are the shortest distance between points on a sphere, the interior angles of a triangle drawn on a sphere will sum to greater than 180 degrees (see this Wikimedia Commons example). Preeminent physicist, Carl Friedrich Gauss (1777-1855), knew this fact quite well, as he performed a geodetic survey of the Kingdom of Hanover by meshing together surveyed triangles. He was aided in this by his invention of the heliotrope, a focused sunlight version of a modern laser pointer.

Gauss supposedly discovered non-Euclidean geometries, a consequence of the arbitrariness of Euclid's parallel postulate. Since Gauss had not published, this discovery is ascribed to János Bolyai, who published in 1832. Although we didn't know until the 20th century that space curves in the presence of a gravitational field, Gauss actually did an experiment in the 1820s to see if space was Euclidian.

It's unclear, however, whether testing the curvature of space was the actual purpose of the experiment, or if the experiment was just a test of his surveying instruments. We now know that the effect is quite small, amounting to just 0.1 picoradians.[1] Although paths on the surface of the Earth will curve, light rays in Euclidian space will travel in straight lines, so a triangle formed by light rays in Euclidian space will have 180 degrees as the sum of its interior angles. Gauss did this experiment with his heliotrope using three high mountains as the vertices of his triangle (see figure).

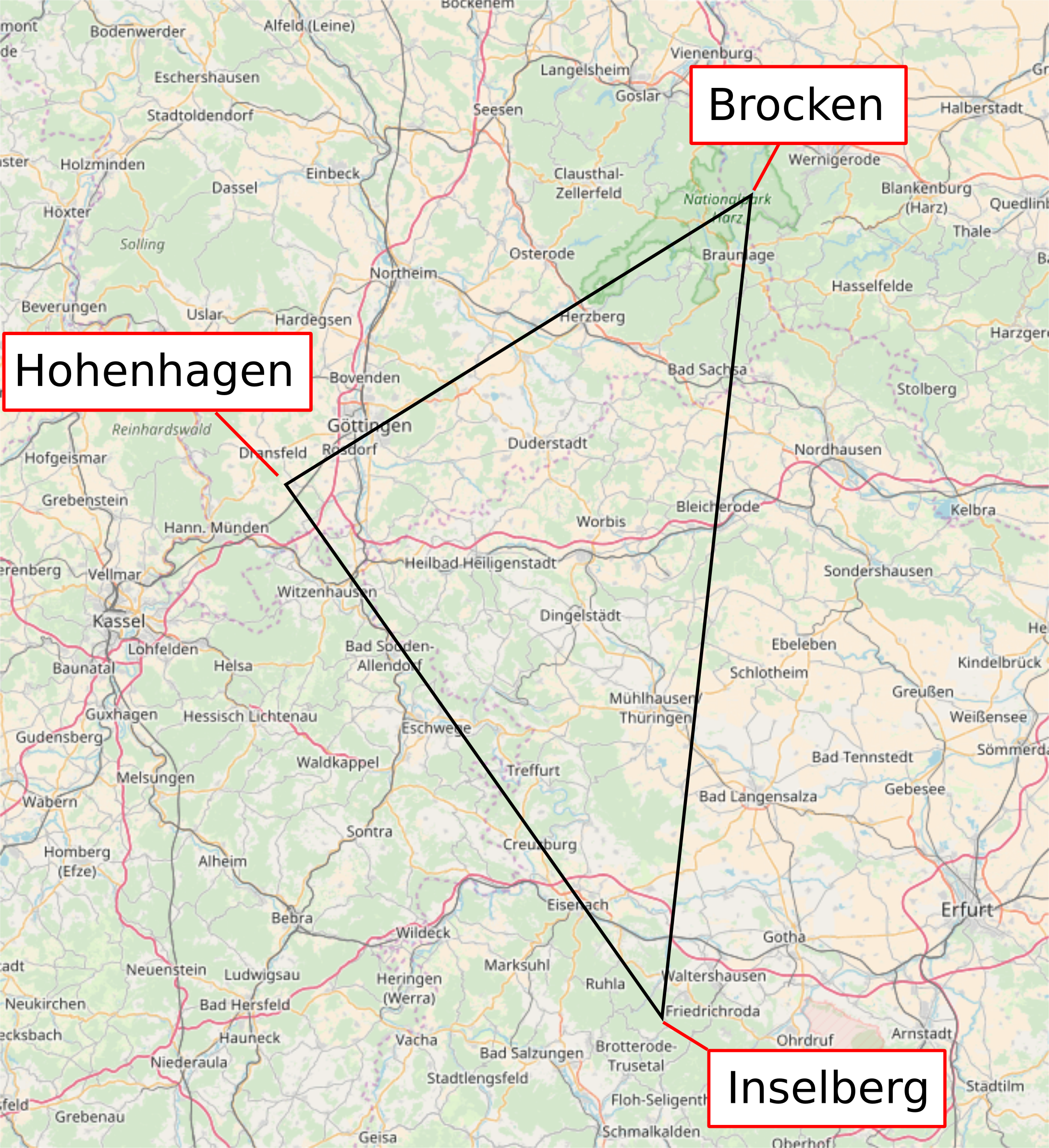

The three mountains of Gauss' triangle experiment, Brocken, Hohenhagen, and Inselberg.

This was a relatively huge triangle having sides of length 69, 85 and 107 kilometers.[2]

The Gauss heliotrope must have been powerful to be effective over such distances.

(Click for larger image. Map image from OpenStreetMap.org. Created using Inkscape.)

There are a few arguments that Gauss didn't intend this experiment as a test of the geometry of space. One of these, by mathematician, John Conway, argues that any effect apparent on such a length scale on Earth would have been noticed by astronomers many years prior.[2-3] Indeed, astronomer, Ole Christensen Rømer (1644-1710) had discovered that the speed of light was finite in observations of the satellites of Jupiter in 1676, long before Gauss' time. However, as an experimenter myself, I know that when the tools are at hand, it's hard to resist that fast-and-dirty experiment. You never know what you might find.

The Earth has some large continents, and its surface area is 71% ocean. You can travel quite far on land, and you can circumnavigate the Earth on sea, but what are the longest great circle paths on each? In 2012, Patrick Anderson, an environmental law attorney, popularized a conjecture that the longest great circle path on sea would be a 32,089.7 kilometer (19,939 mile) trip eastward from Pakistan, snaking under Africa and South America, to northeastern Russia.[5-7] As Anderson admits, he didn't discover that path, he merely found the starting and ending coordinates on a Wikipedia entry for Extreme points of Earth, mapped the great circle, and published a video.[5]

Neither Anderson nor the Wikipedia entry gave any evidence as to how this route was calculated, a definite Wikipedia example of Citation Needed.[8] It's a long route; but, is it correct, and is there any longer route? Also, there's the question as to what such a route would be for land; that is, the longest great circle route that's uninterrupted by lakes or seas.[6] This, of course, is a problem made for computer analysis, so Rohan Chabukswar from United Technologies Research Center Ireland, and Kushal Mukherjee from IBM Research India, decided to tackle it.[4-8] To do this in a non-brute-force method necessitated an efficient algorithm.[4-8]

Wikipedian Protester, xkcd comic no. 285

A cartoon from Randall Munroe's xkcd Comics, licensed under a Creative Commons Attribution-NonCommercial 2.5 License. (xkcd comic 285.)

The required map dataset of the Earth's surface came from the US National Oceanic and Atmospheric Administration's ETOPO1 Global Relief model. This model contains features of the entire planet at a spatial resolution of approximately 1.8 kilometers.[5] This means that you can miss quite a large body of water on land, or a very small island at sea, but it's the best that can be done at present. Since the dataset also includes altitude, it was easy to see whether or not you were at sea level.[5]

A brute-force attempt using data at this resolution would involve 233,280,000 possible great circles, each containing 21,600 points. In such a calculation, 5,038,848,000,000 data points would need to be examined.[5-6,8] Chabukswar and Mukherjee instead used an optimization algorithm called branch-and-bound that examines only the most promising routes from an initial screening.[4-8] The resulted in a greatly diminished computation time, 10 minutes for the water path, and 45 minutes for the land path on a standard laptop computer.[6-8] Their great circle route for a journey by sea matched Andersen's path.

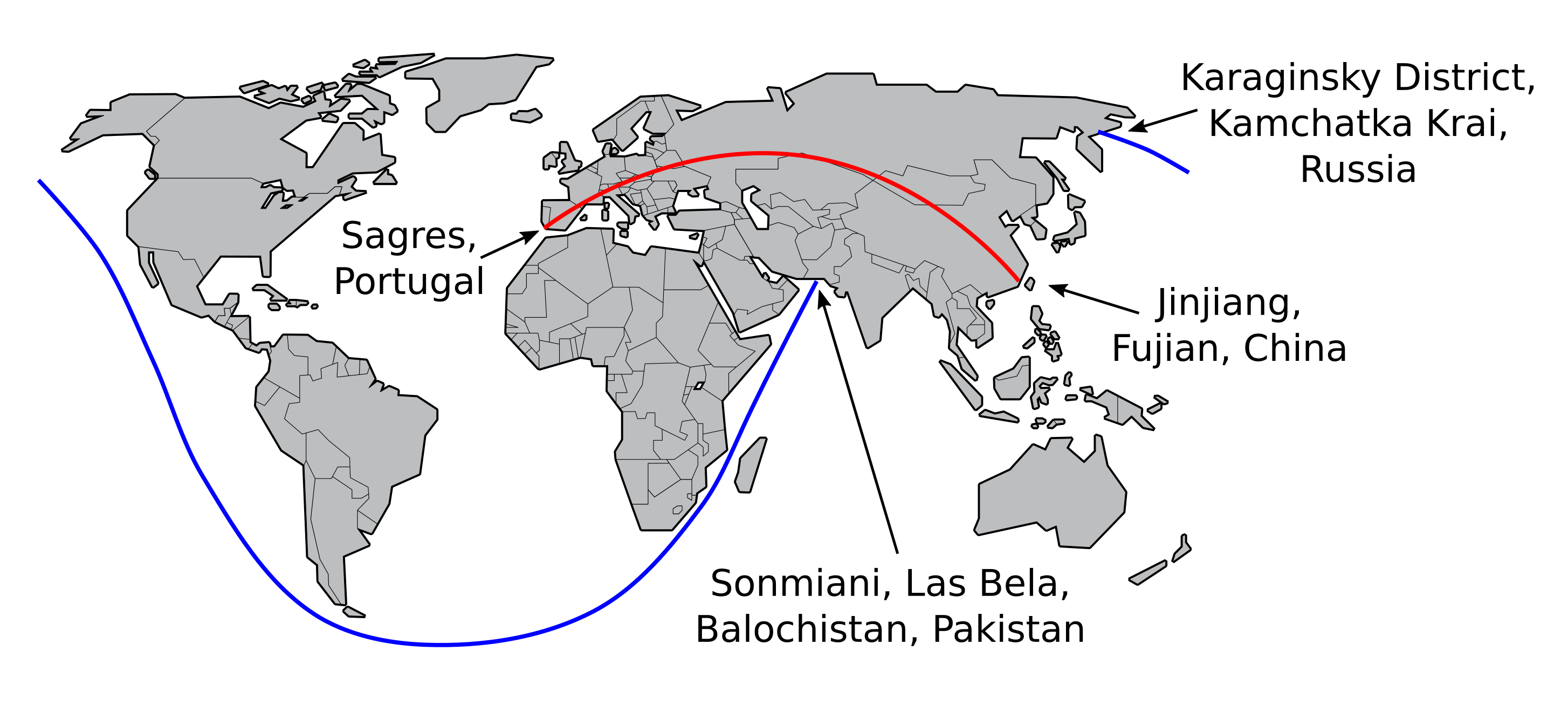

Longest land and sea great circle routes on Earth. (Simplified world map by Tom-b, via Wikimedia Commons. Image created using Inkscape from data in ref 4. Click for larger image.)[4]

The land path that avoids large bodies of water, but not rivers, was a 11,241.1 kilometer trek through fifteen countries. It ran from a place near Jinjiang, Fujian, China, and proceeds through Mongolia, Kazakhstan, Russia, and Europe. In Europe, it passed through Poland, the Czech Republic, Germany, Austria, Liechtenstein, Switzerland, France, and Spain, finally finishing near Sagres, Portugal.[5-6,8] If you wanted to take this path, you would need to take some major detours to traverse bridges.[8]

The starting and ending locations are listed in the table. Two questions remain; namely, who did the initial Wikimedia posting, and when will someone complete the sea trip?[6]

Location	Latitude	Longitude
Karaginsky District, Kamchatka Krai, Russia	58° 36' 34'' N	162° 14' 0'' E
Sonmiani, Las Bela, Balochistan, Pakistan	25° 16' 30'' N	66° 40' 0'' E
Jinjiang, Quanzhou, Fujian, China	24° 32' 55'' N	118° 38' 3'' E
Sagres, Portugal	37° 1' 30'' N	8° 55' 0'' W
