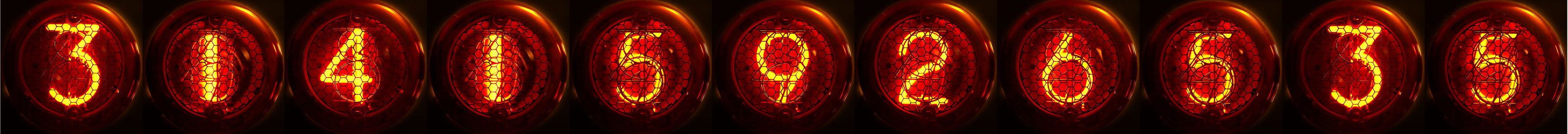

*As many digits of pi that I've memorized, displayed in nixie tubes. (Nixie digits by Hellbus, via Wikimedia Commons, spliced together using the GNU Image Manipulation Program. Click for larger image.)*

One simple whitening method was invented by computer pioneer, John von Neumann (1903-1957). This von Neumann Whitening operates on a bitstream of ones and zeros. The method takes two successive bits at a time, and maps them to a random stream as follows: (0,1) → 0, (1,0) → 1, (0,0) → NULL, (1,1) → NULL, the NULL meaning that the result is ignored, and you move on to the next two bits of input data. As can be seen in the example below of a bitstream slightly biased to 1, this method discards a lot of bits. Recent methods produce better results.[4-5]

*Von Neumann Whitening (randomness extractor) applied to a slightly biased random bitstream. (Drawn using Inkscape.)*

One novel physical random number generator is a merger of art and algorithm called Lavarand in which random numbers are generated from images of active lava lamps. This physical random number generator had its own website hosted by Silicon Graphics in the late 1990s. The method is described in US Patent No. 5,732,138, "Method for seeding a pseudo-random number generator with a cryptographic hash of a digitization of a chaotic system."[6]

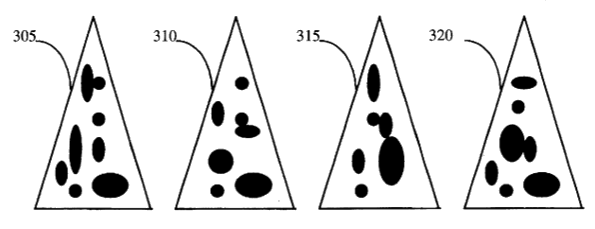

*Figure three of the Lavarand patent.[6] (Via Google Patents.)*

As Werner Heisenberg (1901-1976) realized as he developed his quantum uncertainty principle, quantum mechanics can be a source of exceptional randomness. As I described in a past article (Quantum Random Numbers, September 27, 2010), researchers at the Max Planck Institute for the Physics of Light (Max-Planck-Institut für die Physik des Lichts) have invented a quantum random number generator.[7] Their generator optically harvests randomness from the virtual processes in the quantum foam of the vacuum state. While carefully constructed physical noise generators will produce good random numbers, they're another piece of hardware that adds complexity to a system. That's why algorithmic random number generators, computer programs that generate random numbers, are usually preferred. The numbers that are generated by these are not strictly random; rather, they are just pseudorandom, since knowing the algorithm and its initial state allows the sequence to be reproduced exactly. As John von Neumann said in an obligatory quotation in any article on computer-generated random numbers,

"Any one who considers arithmetical methods of producing random digits is, of course, in a state of sin. For, as has been pointed out several times, there is no such thing as a random number - there are only methods to produce random numbers, and a strict arithmetic procedure of course is not such a method."The linear congruential generator is an extremely simple algorithmic random number generator that's based on recurrence relation published by D.H. Lehmer in 1948,

When proper values are selected forX_{n}= (aX_{n-1}+ c) mod m

a=6364136223846793005, c=1442695040888963407, and m = 2While such a random number generator is sufficient for computer simulation, a random number generator for cryptography requires more effort. The Mersenne Twister is based on the idea of the Mersenne primes.[8-9] It has a 32-bit implementation, called MT19937, based on the the 24th Mersenne prime, that has a period 2^{64}.

The standard deviation of these values is just 6465.770735, and the ratio of the standard deviation to the mean (100,000,000), called the coefficient of variation, is just 0.000065. The uniformity test is not infallible, since a repeated non-random string[0] = 100003299 [1] = 99992853 [2] = 99986788 [3] = 100002336 [4] = 99998079 [5] = 100003374 [6] = 99991133 [7] = 99992626 [8] = 100009032 [9] = 100007810 [A] = 100002324 [B] = 100001841 [C] = 100004021 [D] = 100001959 [E] = 100006852 [F] = 99995673

*Example of the XML markup code output of the NIST Randomness Beacon. The very long hex numbers are truncated, and the UNIX timestamp translates to Tue, 24 Jul 2018 15:20:00 GMT. (NIST Randomness Beacon)*

One problem with the NIST Randomness Beacon is that some cryptologists don't trust NIST. Such suspicion goes back to the 1970s when NIST, then called the National Bureau of Standards, proposed a weak cipher, the Data Encryption Standard that was easily broken by a brute force attack. NIST is working to improve the noise sources by adding some quantum-generated randomness. It's developed a workable quantum random number generator based on single photons of light using a technique called the Bell test.[17-19] The NIST quantum generator has been demonstrated to be a superior source of random numbers.[19] The NIST research team is able to extract 1,024 bits with uniformity of one trillionth of 1 percent from 55,110,210 trials of the Bell test.[19]

- A Million Random Digits with 100,000 Normal Deviates, RAND Corporation, The Free Press (1955).
- George W. Brown, "History of RAND's random digits—Summary," in A.S. Householder, G.E. Forsythe, and H.H. Germond, eds., Monte Carlo Method, National Bureau of Standards Applied Mathematics Series, vol. 12 (Washington, D.C.: U.S. Government Printing Office, 1951), p. 31 ff.
- Jens Boos, "The Nixie Tube Story," IEEE Spectrum, July 25, 2018.
- Eshan Chattopadhyay and David Zuckerman, "Explicit Two-Source Extractors and Resilient Functions," The Electronic Colloquium on Computational Complexity, March 20, 2016.
- New Method of Producing Random Numbers Could Improve Cybersecurity, University of Texas Press Release, May 16, 2016.
- Landon Curt Noll, Robert G. Mende and Sanjeev Sisodiya, "Method for seeding a pseudo-random number generator with a cryptographic hash of a digitization of a chaotic system," US Patent No. 5,732,138, March 24, 1998.
- Christian Gabriel, Christoffer Wittmann, Denis Sych, Ruifang Dong, Wolfgang Mauerer, Ulrik L. Andersen, Christoph Marquardt and Gerd Leuchs, "A generator for unique quantum random numbers based on vacuum states," Nature Photonics, vol. 4 (August 29, 2010), pp. 711-715, doi:10.1038/nphoton.2010.197
- M. Matsumoto and T. Nishimura, "Mersenne Twister: A 623-Dimensionally Equidistributed Uniform Pseudo-Random Number Generator", ACM Transactions on Modeling and Computer Simulation, vol. 8, no. 1 (January, 1998), pp 3-30, doi:10.1145/272991.272995. A PDF copy can be found here,
- Takuji Nishimura, "A C-program for MT19937: Integer version," April 6, 1998.
- George Marsaglia, "64-bit KISS RNGs, The Coding Forums, February 28, 2009.
- Diehard Tests, Florida State University Statistics Website.
- Robert G. Brown, Dirk Eddelbuettel, and David Bauer, "Dieharder: A Random Number Test Suite, Version 3.31.1," Duke University Web Site.
- How Useful Is NIST's Randomness Beacon, Stack Exchange, March, 2014.
- NIST Randomness Beacon Summary.
- NIST Randomness Beacon Slide Presentation (PDF File).
- Home page of the NIST Randomness Beacon.
- Sophia Chen, "Why are countries creating public random number generators?" Science, June 28, 2018, doi:10.1126/science.aau6171.
- Peter Bierhorst, Emanuel Knill, Scott Glancy, Yanbao Zhang, Alan Mink, Stephen Jordan, Andrea Rommal, Yi-Kai Liu, Bradley Christensen, Sae Woo Nam, Martin J. Stevens, and Lynden K. Shalm, Experimentally generated randomness certified by the impossibility of superluminal signals, Nature, vol. 556, no. 7700 (April 1, 2018), pp. 223-226, https://doi.org/10.1038/s41586-018-0019-0.
- New quantum method generates really random numbers,National Institute of Standards and Technology Press Release, April 11, 2018.
- Casting Lots in the Digital Age, This Blog, June 23, 2016.
- Patterns from Randomness, This Blog, May 18, 2017.
- One Time Pads, This Blog, June 12, 2013.
- Random Coprimes and Pi, This Blog, October 10, 2016.
