Negative Thermal Expansion

December 12, 2016

Among the useful items in my electronics toolbox are various lengths of heat-shrink tubing. As every electronics technician knows, covering a cable connection with a short piece of heat-shrink tubing gives your work a finished appearance; or, as my father would say, it "hides all the sins." Heat-shrink tubing also offers strain-relief at the junctions of cables and connectors.

Heat-shrink tubing was invented in 1962.[1] Thermoplastics such as PTFE, PVC and polyolefin are formed into tubes and their molecules are cross-linked, typically through electron radiation. The tubes are then expanded in diameter by application of a differential pressure between the inside and outside of the tubes while they're held above the thermoplatic's crystalline melting point. The hot tubes are rapidly quenched to room temperature, and this locks in the larger diameter.

At the time of use, heating the tubing above the crystalline melting point with a hot air gun causes it to shrink back to its smaller diameter. In most electronics applications, the tubing is polyolefin, which is stable from -55°C to 135°C, and it will shrink about half in diameter. Thermal shrinkage of the thermoplastic, polystyrene, was the basis of the 1970s Shrinky Dinks craft toys.

A Shrinky Dinks butterfly.

(Portion of a Wikimedia Commons image.)

These are extreme examples of temperature-induced changes in a material's size, and the changes are irreversible under subsequent heating or cooling. The vast majority of materials, however, undergo a reversible thermal expansion , increasing in size as the temperature is increased, and returning to their normal size upon cooling. Such positive thermal expansion is the norm, but there are a few materials that show a negative thermal expansion. I reviewed thermal expansion in an earlier article (Negative Thermal Expansion, November 11, 2011).

Thermal expansion is relatively linear within short ranges of temperature, so it's quantified by a linear thermal expansion coefficient , alpha (α),

α = (1/L)(∂L/∂T)

for which L is an arbitrary gauge length, T is the temperature . The thermal expansion coefficient is quite different between materials, as the following table of the room temperature (20°C) coefficient shows. Notice that hydrogen-bonded liquids (ethanol and water) have a much larger thermal expansion coefficient than other materials.

Material	α (10^-6/°C)	Material	α (10^-6/°C)
Ethanol	250	Carbon steel	10.8
Water	69	Glass	8.5
Mercury	61	Alumina	7.8
Aluminium	23	Tungsten	4.5
Stainless steel	17.3	Borosilicate glass	3.3
Copper	17	Invar	1.2
Nickel	13	Diamond	1
Concrete	12	Fused quartz	0.59

Thermal expansion is simply the consequence of atomic vibrational energy acting against the bonding forces that hold the atoms in crystals and molecules together. That's why negative thermal expansion (NTE) is so unusual.

Water has NTE between freezing and 3.984°C; but, as a hydrogen bonded material, something unusual like this might be expected. However, the mainstay of our electronic circuitry, silicon exhibits NTE at very low temperatures, 18 - 120 K . A more useful NTE material is cubic zirconium tungstate , ZrW₂O₈, which exhibits NTE from close to absolute zero up to 775 °C.[2-3]

Since hafnium is chemically similar to zirconium, and molybdenum is chemically similar to tungsten, analogs of cubic zirconium tungstate with such substitutions exhibit NTE also. NTE in another material was discovered in 2010. Scandium fluoride (ScF₃) was found to have a thermal expansion as large as -14 ppm/°C at low temperatures (60-110 K), becoming positive above 1100 K.[4] Its negative thermal expansion is a consequence of a traverse vibration of fluorine atoms that pull the scandium atoms closer together (see figure).[5]

Principle of negative thermal expansion in scandium fluoride

The fluorine atoms in scandium fluoride vibrate in a transverse direction to the scandium atoms to pull them together.

(Drawn using Inkscape.)

We can produce other NTE materials if we expand our purview to metamaterials, where we can assemble structures from materials with different positive thermal expansions that work against each other to give a negative thermal expansion. That's the approach taken by mechanical engineers at the Massachusetts Institute of Technology, the University of Southern California, the University of California at Los Angeles, and Lawrence Livermore National Laboratory, who used projection microstereolithography to fabricate lightweight multimaterial lattices with significant negative thermal expansion in three directions over a temperature range of 170 °C.[6-9]

The research team showed how it's possible to produce NTE using connected structures of materials with different thermal expansions. In their experiments, the materials were a stiff copper-containing material of low thermal expansion, and an elastic polymer of larger thermal expansion (see figure).[8]

A negative thermal expansion metamaterial. The similarity between its action and the NTE principle of scandium fluoride can be seen. (Still images from an MIT YouTube Video.[9])

Says Nicholas X. Fang, an associate professor of mechanical engineering at MIT,

"If we have proper placement of these beams and lattices, then even if every individual component expands, because of the way they pull each other, the overall lattice could actually shrink... once we increase the temperature, they interact with each other and pull inward, so the overall structure's volume decreases."[8]

The research team fabricated these metamaterial structures using a 3D printing method capable of printing two different materials. All structural members were printed from the same polymer, but the polymer of some of the rods contained copper nanoparticles that decreased the thermal expansion of those portions.[7] The structures were 5 millimeters wide, about the size of a sugar cube, and the loading of the copper nanoparticles was chosen from the range 2%, 5%, and 10%.[7]

These structures achieved a volume reduction upon heating of up to 1% for the 10% copper specimens.[7] The size change was three times greater for 10% copper than for 2% copper, and the NTE was observed up to about 540 °F.[7] While the observed NTE is small, it does indicate that a material with a zero thermal expansion can be made. Such materials would be useful for making printed circuit boards.[8] This research was supported by the Defense Advanced Research Projects Agency.[8]

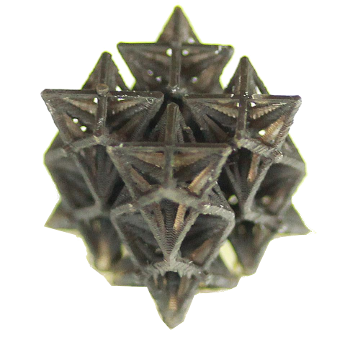

Three-dimensional metamaterial with a negative thermal expansion.

This structure was printed stereolithographically.

(MIT image by Qiming Wang.)
