Harvard Metamaterial Flat lens
July 4, 2016
After a first, unfortunate, experience in
elementary school with a
pinhole camera advertised on the back pages of a
comic book, I saved enough
money to buy a real
camera, a

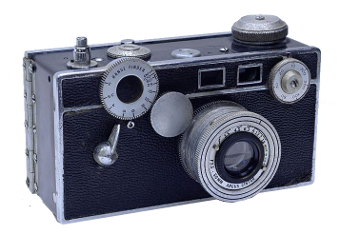

35-mm film format rangefinder focusing camera, a
used Argus C3.
In those days, long before the
Internet, the best way to learn about
technology was by subscribing to a
magazine on the subject. A side-benefit of having such a magazine was the interesting array of products advertised therein, with the affordable products located towards the back. These ads were an
education in themselves. The principal part of a camera is its
lens, and there was a plethora of articles and ads on lenses alone.
After a while, I purchased items to outfit a
home darkroom.
Photography in those days was a
chemical process, and it was interesting to me from that aspect, also. Not having enough money to buy a
commercial enlarger for my darkroom, I decided to build my own. I was happy to realize that the lens of my camera would work as an enlarger lens, but I needed to buy another type of lens, a
condenser lens.
Condenser lenses might be familiar to my readers who are
microscope users. Their purpose in an enlarger is to transform the
point source of
light from a
tungsten lamp to a wide,
parallel shaft of light. The parallel light passes through the
photographic negative, which is imaged onto
photographic paper by the exit lens. More light passes through the exit lens when another condenser lens is placed below the first.
As I found, a condenser lens for this purpose was huge and heavy, since a lot of glass is needed to form parallel rays of light over a large
area (I designed the enlarger to accommodate
negatives up to
120-size, which were 60
mm x 60 mm). Over the years, high
refractive index were developed and the
processing of
optical materials has progressed to the point at which extremely small lenses of exceptional quality are now integrated into every
cellphone and
tablet computer.
The
technological battle cry of the last few
decades has been, "smaller is better," with
computer chips now containing
more than a billion transistors. While cellphone lenses are quite small, there are still applications for lenses that are even smaller. As one example, small, lightweight lenses are needed for
drones, some of which are the size of
flying insects. I wrote about one such drone in an
earlier article (Pop-Up Robots, February 23, 2012).
While a single large lens will
focus light, it's possible to combine many, smaller optical elements to do the same thing. The problem, however, is arranging these so that they act together and do not
distort the image.
Harvard University's Federico Capasso and

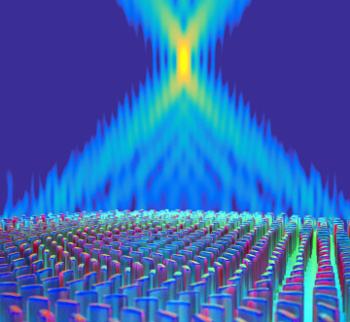

his research group have successfully made an extremely thin optical lens using an array of smaller optical elements.[1-3] The lens is made from a
computed array of high refractive index
titanium dioxide (
TiO2) pillars on a
silica glass (
SiO
2)
substrate (see figures).[1]
The metalens, which is just 2 mm in dimension, has a
numerical aperture of 0.8, and it focuses light with
efficiencies as high as 86%.[1,3] The focusing was superb, being
diffraction-limited, but such a lens operates at just a particular
wavelength of light. It is out-of-focus at other wavelengths. However, such single wavelength lenses are useful for such things as
laser microscopy,
photolithography, and
spectroscopy.[1]
Once the technology of being able to build the phase-shifting titanium dioxide pillars is developed, the device
design is quite straightforward.
Geometrical optics provides a solution for the phase-shift at each region of the plate
(x,y) that's needed to focus a spot of light at a
focal length f for a wavelength
λ.[1]
Since the length
L is much greater than the width
W, the phase shift of light through the length at each point can be adjusted through rotation of the pillars.[1]
Modern
computer technology allows an easy way to prepare a lithography mask of pillar elements that satisfies this equation.
Says Capasso, the senior
author of the
paper describing this lens,
"This technology is potentially revolutionary because it works in the visible spectrum, which means it has the capacity to replace lenses in all kinds of devices, from microscopes to cameras, to displays and cell phones... In the near future, metalenses will be manufactured/a> on a large scale at a small fraction of the cost of conventional lenses, using the foundries that mass produce microprocessors and memory chips."[2]
patent applications have been filed, and commercial opportunities are being explored.[2] This work was supported in part by the
Air Force Office of Scientific Research, the
Charles Stark Draper Laboratory, and
Thorlabs Inc.[1]
Fabrication was carried out in the
Harvard Center for Nanoscale Systems, which is supported by the
National Science Foundation.[1]
