Christiaan Huygens' Coupled Pendulums

May 26, 2016

Injection locking is a useful electronic technique in which one oscillator is synchronized to another when they are coupled and their free-running frequencies are close to each other. This is the method that allows oscilloscopes to display static signal waveforms by locking their internal horizontal oscillator to the signal frequency.

In the age of analog television, injection locking was the method used to lock the vido frame to the screen, and when your set's aged vacuum tubes weren't quite up to this task, the picture would roll vertically (see figure).

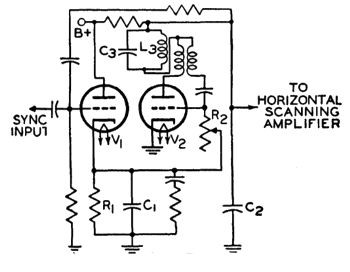

A vacuum tube horizontal oscillator circuit (RCA Receiving Tube Manual RC-25, 1966

A vacuum tube horizontal oscillator circuit, fig. 101 from page 73 of the RCA Receiving Tube Manual RC-25, 1966.

This is a sawtooth blocking oscillator in which the synchronizing signal is coupled through the cathodes.

(Scan of author's copy)[1]

Digital television has replaced analog television, and transistors have superseded vacuum tubes, but such synchronization of electronic oscillators is still used for a number of purposes. Quite importantly, it's possible to lock an oscillator with a frequency that's an integer fraction of another to produce frequency division.

A synchronization method called injection seeding is used to produce greater frequency stability in high power lasers. Injecting the output of a stable laser diode into the resonant path of a high power laser through a partially transparent mirror "seeds" the optical resonance to force the laser to operate at the injected frequency.[2]

Injection locking was known long before the invention of the vacuum tube oscillator. Christiaan Huygens , who invented the pendulum clock , discovered by accident that two pendulum clocks, hung from a common beam, became synchronized to each other. pendulums (or, pendula, if you prefer) are mechanical oscillators .

Huygens noticed the effect while lying in bed because of an illness. Interestingly, the pendulums of these clocks swung in exactly opposite directions after their synchronization. Huygens called this effect "odd sympathy," since the pendulums synchronized 180° out of phase . His discovery was presented to a meeting of the Royal Society on February 27, 1665 (see figure).

Portion of a February 27, 1665, letter of Christiaan Huygens to R. Moray.

Portion of the February 27, 1665, letter of Christiaan Huygens to R. Moray describing the odd sympathy of two proximate pendulums . The letter was read before the Royal Society . (Source: Page 247 of Ref. 3).

Huygens' first hypothesis was that air currents from each pendulum were influencing the swing of the other. Doing some experiments, he found that this wasn't the case, and he decided that the pendulums caused small mechanical movements of the base that caused the synchronization. He also had the idea that two clocks were better than one; that is, you would get better timekeeping with a pair of such synchronized clocks.[4]

Modern studies have shown that the frequency precision of a lattice of N coupled oscillators resists the influence of external noise by a factor of N, at least for smaller N.[5] I presented a computer simulation of the synchronization of three coupled oscillators in an earlier article (Coupled Oscillators, November 15, 2011). You can view videos of synchronized pendulums on the Internet.[6-7]

Huygens' coupled pendulums have continued to interest scientists after many centuries. A 2002 study by researchers at the Georgia Tech showed that synchronization does not happen in all coupling conditions. In particular, they found that not all twin pendulums perform as Huygens found. If the mounting is too rigid , or the coupling is too small, there will be no synchronization. Mathematical analysis by the Georgia team indicated that pivot friction is an important aspect of the phenomenon.[8-9]

Just recently, another study of Huygens' coupled pendulums has been published by scientists and engineers from the Center for Scientific Research and Higher Education at Ensenada (CICESE, Ensenada, B.C., Mexico), the Department of Production Engineering (Zacatlan, Puebla, Mexico), and the Eindhoven University of Technology (Eindhoven, The Netherlands).[10-11] Their experimental clocks are shown below.

Experimental clocks for the Huygens' experiment.

The pendulum of each is a 5 kilogram metallic mass attached to a 0.99 meter wooden rod.

The experimental setup is slightly different from that of Huygens in that they are supported on an elastic wooden structure, and not hanging from the structure.

(Figs. 2 of ref. 10, also found here, licensed under a Creative Commons Attribution 4.0 International License.)

In this modern version of Huygens' experiment using a different mounting, the coupled clock pendulums oscillate in-phase, and not in Huygens' "odd sympathy."[10] The researchers created the most detailed mathematical model of this phenomenon to date, and they verified their model through experiment. They were able to disprove a theory that the synchronization arose from acoustic pulses, and they showed what conditions allow in-phase and out-of-phase synchronization.[11]

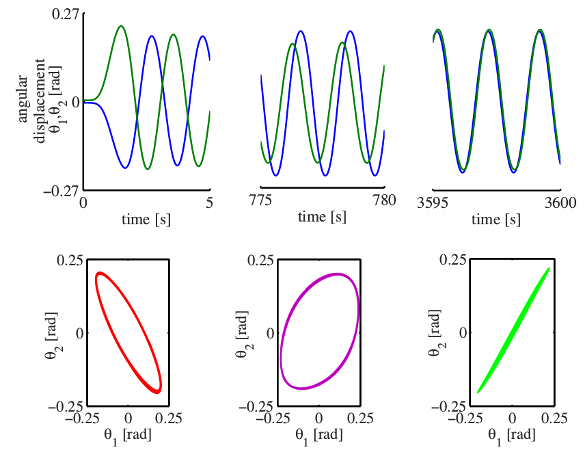

Experimental results for a clock experiment using two representations. The pendulums are originally 180-degrees out of phase, and they then proceed to synchronize over the course if an hour. (Fig. 3a-3c and fig. 4a-4c of ref. 10, licensed under a Creative Commons Attribution 4.0 International License.)
