Breath Analysis

December 7, 2015

There's a joke that bad breath is better than no breath at all. With all of today's aids to oral hygiene, there's no reason for most people to have bad breath, except after eating certain foods, such as garlic and onions. Mouth odors can also be diagnostic of certain medical conditions. Ketoacidosis, a condition caused by untreated diabetes, can cause the breath to smell like acetone.

Sinusitis will cause an odor on a person's breath, as will tobacco smoking. In what I consider just anecdotal evidence, a 1930s marriage manual claimed that an odor of semen could be detected on a woman's breath within an hour after sexual intercourse.[1] Perhaps I should write a proposal to fund a scientific study on this.

All these are odors detectable by the human sense of smell (olfaction), which is not that sensitive. Although experimental evidence is lacking, and an experiment would be difficult to perform, it's acknowledged that dogs are much better at scent recognition than humans. Just as we have amplifiers for our hearing, there are also instruments that detect faint odors.

"Do you hear me, now?"

More than 3 million hearing aids are dispensed annually in the United States.

(Portion of a Wellcome Trust image, A woman shouting into a man's ear-trumpet, via Wikimedia Commons.)

Over the years, scientists have developed devices that act as artificial noses. The simplest of these involves heated tin oxide that changes its electrical conductivity upon exposure to reactive gases, such as hydrogen and carbon monoxide. While adequate for a certain range of applications, these hardly qualify as general purpose odor sensors.

As I wrote in a previous article (Weighing Attograms, January 27, 2014), resonant cantilevers can be used as sensitive detectors of mass changes. The cantilever, clamped at one end as shown in the figure, is well known to mechanical engineers , since its properties are explained by some simple mathematics .

A cantilever beam .

Since the beam density is a determinant of the resonant frequency, molecules adsorbed on the surface of the beam can be detected.

(Illustration by the author, rendered using Inkscape.)

The resonant frequency f of such a cantilever is given as

where t is the beam thickness, L is the beam length, E is Young's modulus , and ρ is the material density . Surprisingly, the width of the beam doesn't figure into the formula. If we coat the cantilever with a material that selectively adsorbs a certain type of molecule from the air, we can sense that odor. MEMS technology has enabled creation of arrays of a large number of such cantilevers, so our artificial nose can detect many odors at one time.

While arrays of such cantilevers can serve as sensors for a certain spectrum of odors, their fabrication takes a lot of time and resources, and we still need to identify an appropriate group of chemical coatings to adsorb the molecules of interest. Optical spectroscopy allows creation of a more general type of odor sensor.

Chemists routinely use infrared spectrometers to identify chemical compounds, since chemical compounds have an unique infrared signature arising from their different bonds. In 1934, Richard Badger proposed a rule that stronger bonds have higher vibrational frequency.[2] The logic of this can be seen in the analogy with the frequency of a stretched guitar string. Infrared spectra are extremely useful for chemical compound identification, so spectra for the important chemical compounds have been tabulated. An example can be seen in the figure, below.[3]

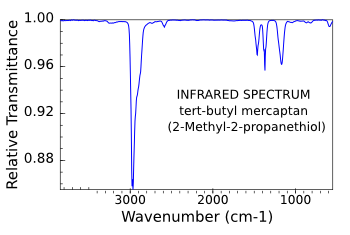

Infrared spectrum of tert-butyl mercaptan, a chemical added to natural gas to make leaks more detectable.

(Data from the NIST Chemistry WebBook.)[3]

For really sensitive measurements, you can take spectroscopy one step farther with a technique called cavity ring-down spectroscopy. The concept for this resembles my attempts as a child to launch a flashlight beam betweenparallel mirrors. If you arrange two highly-reflective parallel mirrors as shown in the figure, and then introduce a light beam between them, the beam will reflect back and forth many times before decaying to nothingness. For best effect, the optical cavity must be resonant at the wavelength of the light source.

If there's a vapor absorbing the light between these mirrors, then the light will decay faster. Since we're measuring a time, and not an absolute intensity, the technique rejects noise to detect trace quantities of chemical compounds.

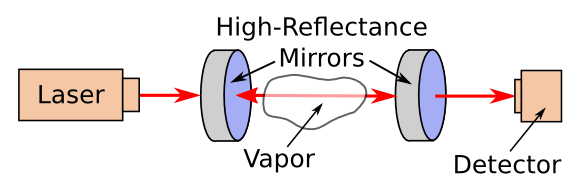

A laser-excited ring-down cavity. If we're able to tune the wavelength of the laser light, which is difficult, or use a broadband light source with filters at the detector, we can create a sensitive infrared spectrometer. Although the mirrors are highly reflective, they let a little light through to allow a pulse of light from the laser to enter, and light to exit to excite the detector. (Created by the author using Inkscape.)

It's easy to calculate the ring-down time constant τ by analysis of the decay curve. The decay curve follows the function

in which I(t) is the intensity at a time t and I_o is the initial intensity before the laser pulse is switched off. With sufficiently reflective mirrors, the light ray will bounce thousands of times, and the effective path length through the vapor can be a kilometer. The absorbance of the vapor can be calculated from the ring-down time τ.

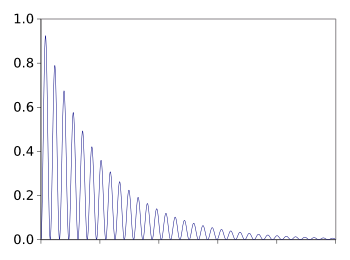

A ring-down curve for an optical cavity. The ring-down time is the point at which the intensity has decayed to 1/e (0.36788) of its initial value.

(Graphed by the author using Gnumeric.)

The starting point for breath gas analysis was 1971, when Linus Pauling and his colleagues published a paper showing that human breath contained more than 200 volatile organic compounds.[4] Since that time, a total of about 3,000 have been detected. Chemical compounds specific to certain diseases are present in just trace quantities. Today, there's even a topical journal in this research area, the Journal of Breath Research, published since 2007.

Kris Newby, the communications manager for the Stanford University (Stanford, CA) Center for Clinical and Translational Research and Education, has published an interesting article on recent research in using breath analysis for disease diagnostics. The article appears in the recent issue of Stanford Medicine, a Stanford University publication.[5]

In 2013, three graduate students at Stanford's High Temperature Gas Dynamics Laboratory, Christopher Strand, Victor Miller and Mitchell Spearrin, were brainstorming possible projects outside their chosen aerospace field. After first considering a marijuana breathalyzer, they focused on the possibility of a disease breathalyzer. Their first target was ammonia gas, the sign of a serious metabolic disease called hyperammonemia.[5]

Not surprisingly, they decided that mid-infrared spectroscopy would be a good detection means, and they received a small grant to produce a prototype device within a year. In their device, a person blows into a tube and their breath enters a pressure-regulated cylinder in the path between a laser beam and a photodetector. Their prototype was constructed on a table top, and it was designed to detect not only ammonia, but also carbon dioxide as an indicator of the length of a breathing cycle.[5]

As they found, ammonia is a difficult gas to detect, since it's a polar molecule that's inclined to stick to surfaces, and it's highly soluble in water. As a consequence of its solubility, ammonia dissolves in the mouth; and, as a consequence of its polarity, it's adsorbed on the walls of plastic tubing. After much development work, the research team shrunk the device to a portable unit, and they obtained permission for human subject testing, and that testing went well.[5]

There are plans for a larger human trial on young children, and funding has been secured from the NIH Small Business Technology Transfer program and the Wallace H. Coulter Foundation. I wrote about Wallace H. Coulter in a previous article (Flow Cytometry, October 11, 2011). Stanford University has filed a provisional patent application on this work, and the team has formed a company, Lumina Labs, to commercialize the technology.[5]
