Mass-Energy Equivalence

June 2, 2014

As Scott Adams has proved in his popular "Dilbert" comic strip, people in technology enjoy humor that's directed at their profession. There's also the mostly mathematics/computer science themed xkcd comic of Randall Munroe. Long before Dilbert, and Munroe's stick figure philosophers, Sidney Harris was publishing science-themed cartoons in magazines such as American Scientist. I have quite a few books by Sidney Harris on my bookshelf.[1-2]

One memorable Sidney Harris cartoon shows Albert Einstein at a chalkboard. He's written E = ma², crossed it out, then E = mb², and crossed that out. You can see a copy of the cartoon, here. It's the cover image of one of his books.[1] Harris has also published a book entitled, "Einstein Simplified," containing cartoons on many science subjects, not just Einstein.[2]

Albert Einstein in 1882, three years of age.

This is the oldest known photograph of Einstein.

(Wikimedia Commons image, modified for artistic effect.)

Einstein's discovery of mass-energy equivalence probably didn't happen that way. Not only that, but his publication of this principle didn't contain the E = mc² equation; instead, Einstein wrote L = mc², where L is the Lagrangian.[3]

The Lagrangian, is a useful concept in classical mechanics. It's the difference between the kinetic energy (T) and the potential energy (V) of a system; i.e., L = T - V. The mass-energy equivalence principle, as expressed in an English translation of his paper, is

"The mass of a body is a measure of its energy-content; if the energy changes by L, the mass changes in the same sense by L/9 x 10²⁰ , the energy being measured in ergs, and the mass in grams."[3]

The conversion of mass to energy is most apparent in the explosion of a thermonuclear weapon, and it happens all the time on a smaller scale in nuclear processes such as radioactive decay. The inverse process of energy conversion to mass is also observed in particle accelerators, although not in the de novo creation of matter, but in the increased mass of existing particles. The de novo creation of matter from light is predicted by quantum electrodynamics, which is one of the most successful theories of modern physics. The true creation of matter from energy is likely the mechanism of the Star Trek transporter

Physicists from the Blackett Laboratory of Imperial College (London, UK) and the Max-Planck-Institut für Kernphysik (Heidelberg, Germany) have recently proposed an experiment to demonstrate light-to-matter conversion based on a mechanism known as Breit–Wheeler pair production.[4-9] In 1934, American physicists, John Archibald Wheeler and Gregory Breit, observed that it's possible for two photons to combine to produce an electron and a positron.[5,9] Wheeler and Breit thought that their process would never be seen in a laboratory, but that was before we had such technology as high energy lasers and accelerators.[5,9]

There was one experiment at the Stanford Linear Accelerator Center (SLAC, Stanford, CA) in 1997 that gave indirect evidence for Breit–Wheeler pair production. In that experiment, a high energy laser was directed at an accelerated beam of electrons which reflected some of the photons back into the incident laser beam. This allowed an interaction between high energy photons, and the data indicated that electron-positron pairs were produced.[8]

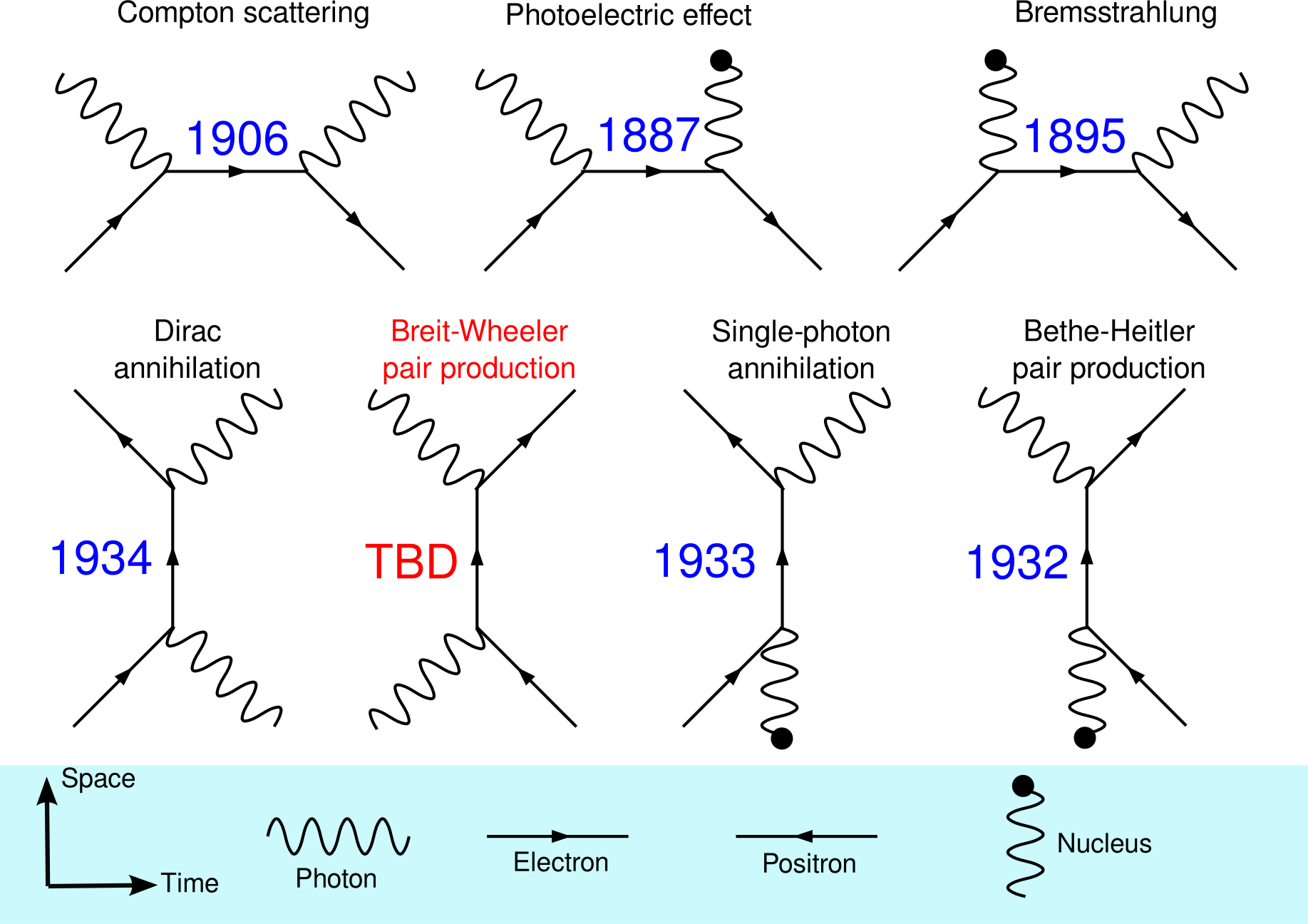

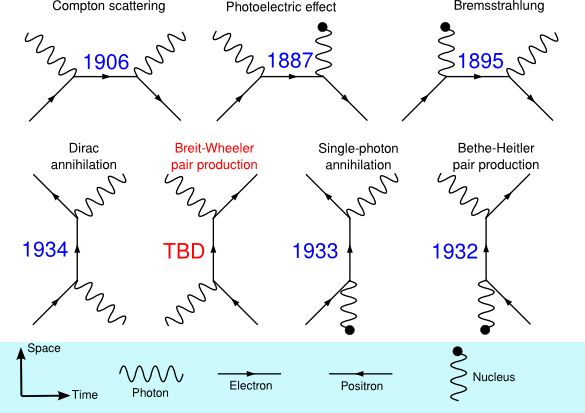

The six demonstrated ways, and one theorized way, in which photons and matter can interact. Original Imperial College London image by Oliver Pike, redrawn for clarity.[5] (Click for larger image).

Breit-Wheeler pair production is one of seven fundamental ways that light and matter interact (see figure). It's interesting to note that the other six are all associated with a Nobel Prize.[5] What the British-German team proposes is a photon–photon collider in which a gamma ray beam is directed at a high-temperature radiation field in a hohlraum (German for "empty room") excited by intense laser radiation.[4]. This idea emerged from discussions of laser fusion.[5-6]. Says team member, Oliver Pike,

"Within a few hours of looking for applications of hohlraums outside their traditional role in fusion energy research, we were astonished to find they provided the perfect conditions for creating a photon collider."[5]

The photon-photon collider would operate in a two-step process. First, an ultra-high-intensity laser accelerates electrons to nearly the speed of light. These electrons are directed to a gold target, and the resultant impact produces an intense photon beam. This beam is directed to the interior of the hohlraum, a small can made also from gold, that has been laser-excited to create intense thermal radiation in its interior. Collisions of the photons will create an estimated 100,000 electron-hole pairs.[4-8]

The research team hopes to do the actual experiment within the year.[6-7,9] The experiment would need to be done at one of the few sites with such capability. These include the OMEGA Laser at the University of Rochester (Rochester, New York) ,[6-7,9] and a laser at an atomic weapons facility in Aldermaston, Berkshire, UK.[9]

This experiment will simulate a process presumed important in the first hundred seconds of the universe, and also in present day gamma ray bursts.[5] The research was funded by the Engineering and Physical Sciences Research Council, the John Adams Institute for Accelerator Science, the Atomic Weapons Establishment, and the Max-Planck-Institut für Kernphysik.[5]

Mass-Energy Equivalence
