Let's Do The Twist

May 9, 2014

Children of Baby Boomers can easily embarrass their parents by asking them to demonstrate the novelty dance of their era, the Twist (not recommended for hip-replacement recipients). This dance was popularized in 1960 by a recording of the same name by Chubby Checker; and, unlike ballroom dances, it was easy enough to be learned by elementary school students, thus its popularity.

Twist is an important feature in many natural systems and artificial devices. A retired colleague of mine has been publishing scientific studies of the energy efficiency of twisted rubbers used for propulsion of model airplanes. I wrote about the twisting tendrils of cucumbers and squash in a previous article (Twisty Cucumbers, All Alike, September 7, 2012). These tendrils are used to draw the these plants upwards through formation of a spiral /helical structure (see photograph).

Tendrils of the cucumber plant, Cucumis sativus. In the top image, the tendril has just grasped an object and it hasn't formed the dual helix structure. The dual helix structure is shown in the lower image. (Top image by Kropsoq, via Wikimedia Commons. Lower image, Harvard SEAS image by Joshua Puzey and Sharon Gerbode).[1]

As can be seen in the photograph, the structure of the twist is unusual. There's a right hand helix on one end, and a left hand helix on the other. In the center, there's a transitional region, called a called a "perversion," a word derived from the Latin adjective , "perversus," which means slanted, crooked, or cross-eyed. This structure was noted by Charles Darwin in 1865.

These tendrils are soft springs when gently pulled, but they become stiff springs when pulled hard. A stressed cucumber tendril doesn't unwind into a flat ribbon; rather, it coils further.[1] In 2012, the twist motor of these tendrils was reproduced in an artificial material structure by a research team led by scientists from the Harvard University's School of Engineering and Applied Sciences .[2]

They mimicked this mechanical structure by gluing a fabric ribbon to one side of a silicone ribbon and a copper wire to the other side. The apparent key to the design is that the bending stiffness of the ribbon is higher than the twisting stiffness, so it's easier to axially twist the ribbon than to bend it.[1] A patent application has been filed on this technology.[3]

Further work on this topic has been published by other researchers at the Harvard School of Engineering and Applied Sciences.[4-8] David R. Clarke, a materials scientist, Katia Bertoldi, an associate professor of applied mechanics, Jiangshui Huang, a postdoctoral research associate in Clarke's group, Jia Liu, a graduate student in Bertoldi's group, and Tianxiang Su, a former postdoctoral associate in Bertoldi's group, have just published an open access paper in PLoS One describing a hemihelical twist structure that doesn't appear in nature.[4]

In their experiments, the research team was attempting to make two-dimensional springs by bonding two elastomer strips of different lengths after first stretching the shorter one to reach the same length as the longer one. They expected that this composite would curl into a scroll. I would have expected the same. Instead, they got a hemihelix with multiple transitions (perversions) from one twist direction to the other. The process used to form the composite strip is shown in the figure.[5]

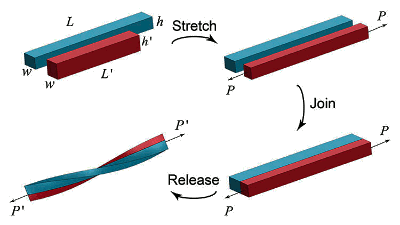

To create the twist composite, the shorter elastomer strip is stretched by a force P and joined to the longer strip. When the stretching force is slowly released, the bi-strip twists into a helix or a hemihelix.

(Harvard University image by Jia Liu.)

To analyze the conditions under which hemihelices would form, the research team tried different width-to-height aspect ratios of the elastomer strips. They found that when a strip is very wide relative to its height, a helix is formed, and there's a critical aspect ratio at which a hemihelix will form.[5] What's interesting about this discovery is that other materials will rupture when subjected to the mismatch strain induced in forming the composite, and that's why this effect has not been observed previously.[5-6]

Says study coauthor, Katia Bertoldi, "Once you are able to fabricate these complex shapes and control them, the next step will be to see if they have unusual properties; for example, to look at their effect on the propagation of light."[5] This effect is reproducible, so novel sensors, resonators, and electromagnetic wave absorbers might be built.[5] As Jia Liu explains,

"We see deterministic growth from a two-dimensional state—two strips bonded together—to a three-dimensional state... The actual number of perversions, the diameter, everything else about it is entirely prescribed. There is no randomness; it's fully deterministic. So if you make one hundred of these, they'll always perform exactly the same way."[5]

Harvard twisted composite helix and hemihelices

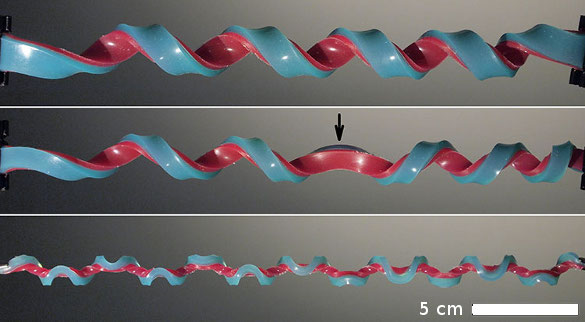

Top image, a simple helix; middle image, a hemihelix with one perversion marked by an arrow; and, bottom image, a hemihelix with multiple perversions. The scale bar of 5 centimeters is valid for all images. (Harvard University image by Jiangshui Huang.)

This research was supported in part by the Harvard Materials Research Science and Engineering Center, which is supported by the National Science Foundation.[4-5]
