Strong Cellulose Filaments
July 2, 2014
Wood has always been a useful
structural material; but, as the
fable of the
Three Little Pigs asserts, its
strength is somewhat limited. A
house built of
sticks proved to be stronger than a house built of
straw, but not as strong as a house built of
brick. This fable is still an
object lesson, when we replace the
wolf's huffing and
puffing by
hurricane-strength winds.
As most people realize, wood has a
texture, or
grain, along its
growth direction. Wood, as
harvested, has different
mechanical properties in different directions. That's because its component material,
cellulose, is a long, straight
polymer strand, bonded together by
hydrogen, as I discussed in a
recent article (Cellulosic Carbon, April 30, 2014). Since the mechanical strength for
forces longitudinal to the grain is larger than the strength in the
transverse direction,
trees sway in the wind but maintain their length.
In the
mid-nineteenth century,
Immanuel Nobel (1801-1872), who was the
father of
Alfred Nobel of the eponymous
Nobel Prize, realized that a strong
laminated board could be made from several thin layers of wood bonded together in a cross-grain arrangement. He
invented a
lathe that peeled sheets of wood from
logs to make such laminates.
Plywood manufacturers produce wood sheets with high strength by laminating the wood so that alternate layers have their grain aligned
perpendicular to each other.
Such
materials engineering of wood on a
macroscopic scale level is so successful that its encouraged
scientists to attempt improvements at the
nanoscopic level. Cellulose
nanocrystals are straight,
needle-shaped, about 3
nanometers wide by 500 nanometers long, and their mechanical properties are highly
anisotropic. They have an estimated
Young's modulus along the [001] (c-axis) of 206
GPa, which is comparable to that of
steel, while their Young's modulus along [100] (a-axis) is estimated to be only 19 GPa.
Recent research in combining nanoscale cellulose strands into
filaments has been undertaken by a team of scientists from the KTH
Royal Institute of Technology (
KTH, Stockholm, Sweden), the
Deutsches Elektronen-Synchrotron elektronsynkrotronen (DESY,
Hamburg, Germany), the
University of Kiel (Kiel, Germany), the
Helmholtz-Zentrum Geesthacht,
Institute for Materials Research (Geesthacht, Germany) and
Innventia AB (Stockholm, Sweden). They've developed a process that combines a
hydrodynamic alignment of the cellulose nanofibrils with a
dispersion–
gel transition to produce
homogeneous, smooth filaments from a low-
concentration dispersion of cellulose nanofibrils in
water.[3-4]
Cellulose nanofibrils are easily obtained from trees, for which each single cellulose fiber is composed of tens of millions smaller fibers, called "fibrils. There are several ways to separate these from the fibers, and the
research team developed a process to rebind these fibrils together into new fibers with controlled mechanical properties.[4] Says study coauthor,
Fredrik Lundell, an
associate professor of
mechanics at KTH,

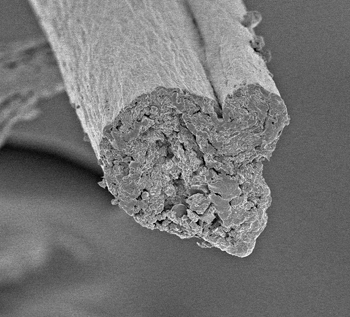

"We have taken out fibrils from natural cellulose fibers... then we have assembled fibrils again into very strong filament. It is about 10 to 20 microns thick, much like a strand of hair."[4]
The research team was able to produce such fibers with a
specific ultimate strength considerably higher than previously reported cellulose filaments. Specific strength is the strength normalized to a per
weight basis.[4] On such a per weight basis, these fibers can be stronger than
steel or
aluminum. Such strength arises from the process used in making the filaments, which achieves an alignment of the nanofibrils on a nanoscale.[3]

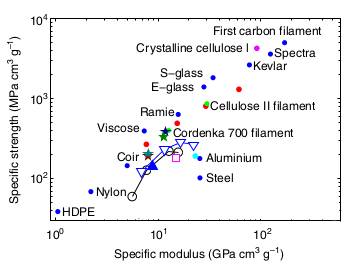

Some representative mechanical properties of cellulose filaments for several different processing cases are shown in the following table.[3]
The developed process for producing these filaments is also
environmentally friendly. Aside from water and cellulose, there's just table salt (
sodium chloride), used as a means of
binding the nanofibrils together. Says
L. Daniel Söderberg, an
adjunct professor of mechanics at KTH and a study coauthors, remarks that "...the material is 100 percent compatible with
nature...
Cows eat cellulose. Likewise, dead trees and
plants are broken down by natural processes."[4]
The material is environmentally friendly in another way. Since the mechanical properties of the filaments can be controlled, they can be made
flexible. When the fibrils are perfectly aligned in the thread, there's high strength, but misalignment allows flexibility. Trees do this naturally, letting some parts, such as
branches, to bend in the wind rather than breaking. Flexible cellulose filaments could substitute for
cotton in
clothing.[4]
In a world where we've reached
peak oil and possible peaks in the production of various other
raw materials, some believe that we're close to reaching peak
cultivation of cotton.[4] Additionally, says Lundell,
"Cotton cultivation requires large amounts of water... Take for example the Aral Sea, which more or less disappeared as a result of the cultivation of cotton in Asia. If we are to have a 100 percent sustainable society then we need more materials that have a natural place in the natural cycle."[4]
Considerable variation of the process is imagined, such as adding
carbon nanotubes to allow for
electrical conductivity. These filaments might also be used to replace
glass fibers in
fiberglass. The next focus of the team's research is to scale the process to higher volume production. This research was mostly done at the
Wallenberg Wood Science Center at KTH, with cooperation by DESY in Hamburg, Germany.[4]
