Molybdenum Disulfide for DNA Sequencing

August 27, 2014

Electronics and computing technology have had a big impact on many scientific fields. In biotechnology, this is especially apparent in the sequencing of DNA. I wrote about advances in DNA sequencing technology in two previous articles (Full Genome Sequencing, June 7, 2012, and DNA Analysis, September 17, 2010). The cost reduction, as can be seen in the chart, has been huge, and it's been the result of moving DNA analysis from chemistry to physics.[1]

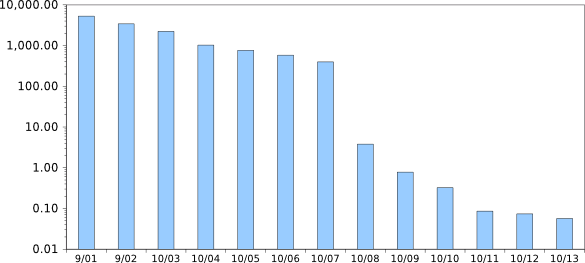

Time variation of the cost per megabase of DNA sequencing in US dollars (note the logarithmic scale). The present cost is about five cents, which puts the cost of an entire human genome sequence at about $5,000. In September, 2001, the cost was a factor of 100,000 greater, but the cost has not declined in the last two years. (Graphed using Gnumeric from data at http://www.genome.gov/sequencingcosts.)

The newer, non-chemical techniques for DNA sequencing are based on the conductivity change when DNA is threaded through a nanopore. Passage of a DNA molecule through the nanopore results in a small fluctuation in electrical current in the ionic solution in which it's dissolved. The four different bases, Adenine (A), Cytosine (C), Guanine (G) and Thymine (T), give different currents since they are slightly different in shape and size.

Graphene sheets have been proposed as a nanopore material, since the thinness of graphene allows good resolution of these base units.[2-4] The use of graphene as a nanopore membrane is an advance over nanopore sequencing work done in the last decade.[5] In the example shown in the figure, below, from a recent US patent, DNA is threaded through a nanopore in the gate of a field effect transistor.[6]

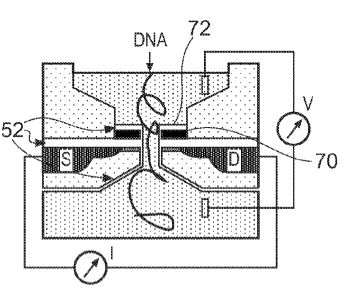

Figure one of US patent no. 8,074,827, "Apparatus And Method For Molecule Detection Using Nanopores," by Matthias Merz, Youri V. Ponomarev and Gilberto Curatola (March 11, 2014). (Via Google Patents).

Graphene, which is an atomically-thin sheet of graphite, is highly conducting in its plane, but it insulates the regions on opposite sides of the sheet. A nanometer hole can be drilled in a graphene sheet using an electron beam, and the sheet can be used to separate solutions on opposite sides of the sheet. Although this is like the geometry of a Coulter counter,[7] the electrical conduction mechanism is different. Solution ions in the hole affect the sheet conductivity of the graphene, and DNA threaded through the holes displaces these ions to change the sheet conductivity.

Mechanical engineers at the Department of Mechanical Science and Engineering of the University of Illinois have done computer simulations on the use of molybdenum disulfide (MoS₂), a sheet material somewhat like graphene, as a nanopore material for DNA sequencing.[8-10]. Molybdenum disulfide sheets are thin, like graphene. While DNA tends to stick to graphene, introducing signal noise, DNA does not stick to molybdenum disulfide, so it threads through nanopores cleanly and quickly.[9-10]

While the signal-to-noise ratio for the ion current of graphene in DNA sequencing is just three, computer simulation found that the signal-to-noise ratio of molybdenum disulfide can be greater than fifteen.[8] Single layers of molybdenum disulfide also offer a different means of base detection, since the bases also impart a difference in transverse tunneling current.[8] The nanopores can be crafted to give different edges containing a different combination of molybdenum and sulfur atoms to give an optimized signal strength.[8]

A DNA molecule passing through a molybdenum disulfide (MoS2) sheet. MoS2 has been found to be a better material than graphene for DNA sequencing. (University of Illinois image courtesy of Amir Barati Farimani.)

The computer simulations showed that four distinct signals are obtained from the four different bases in a double-stranded DNA molecule, while other systems have a problem distinguishing A from T and C from G. The University of Illinois research team is now investigating combinations of molybdenum disulfide with another material to produce a workable device.[9] Says graduate student Amir Barati Farimani, who was the first author of the paper describing this research,

"The ultimate goal of this research is to make some kind of home-based or personal DNA sequencing device... We are on the path to get there, by finding the technologies that can quickly, cheaply and accurately identify the human genome. Having a map of your DNA can help to prevent or detect diseases in the earliest stages of development."[9]

This research was funded by the US Air Force Office of Scientific Research and the US National Science Foundation.[9]
