Lunar Mascons

June 26, 2013

When initially addressing a problem, I usually start with a spherical cow approximation . Extreme accuracy is not needed in every investigation, and the extra work to achieve exquisite control in an experiment would just waste time. When things look promising, I clean things up later. Of course, I always risk overlooking that Nobel Prize discovery lurking in the next decimal place ,[1] but I'm usually not that lucky.

I remember my first introduction to significant digits , which was in high school chemistry . There's always a lot of long division in chemistry problems, and division was a lot of work in those days before inexpensive calculators . Knowing when to stop calculating was a big help. In my college days, sliderule calculations were liberating, since your significant digits were physically limited by your computing device.

Figure caption

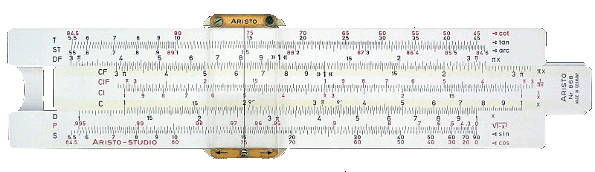

Mid-twentieth century computing device - The sliderule . The more expensive models were crafted from bamboo . Mid-priced units were aluminum , surprisingly priced the same as their aluminium counterparts. Most students had plastic versions, such as the one pictured. (Photograph by Roger McLassus, via Wikimedia Commons.)

We usually treat the Earth's mass as a uniform sphere ; and, thereby, a point source of gravity at its center . However, looking out nearly any window will convince you that Earth's topography is not that uniform. Of course, Earth's surface features, which range from Mount Everest (8,848 meters above sea level) to the Mariana Trench (10,911 meters below sea level), are just 0.31% of the radius of the Earth (6,371 km); so, it might as well be a perfect sphere. I wrote about Newton's conclusion that a uniform spherical mass can be analyzed as a point mass in a previous article (Newton's Gravitational Theorem, March 5, 2012).[2]

Aside from these minor surface imperfections, the rest of the Earth is relatively homogeneous , at least when examined radially . As the figure shows, the variation of gravitational acceleration from place to place is of the order of tens of milliGals , compared with the standard surface gravity of 976-983 Gal. The overall variation is just 0.01%. The Gal unit is named in honor of Galileo for his pioneering studies on gravitational acceleration.

Earth's gravitational anomalies

Earth's gravitational anomalies .

The mean gravitational acceleration of the Earth is about 980 Gal, so the anomalies are small.

(NASA image.)

Such uniformity arises from Earth's large liquid core , which smooths out mass variation. The situation is somewhat different for the Moon , which is mostly solid throughout, and it has had frequent encounters with huge asteroids , as its pock-marked surface shows. Scientists involved with NASA's GRAIL mission to map the Moon's gravitational field have just published their findings in Science .[3-7]

The large gravitational anomalies of the Moon were discovered by scientists from the Jet Propulsion Laboratory (JPL) just a year before the first manned landing, that of Apollo 11 , on July 20, 1969.[4-5,7]. Excess gravity arises from excess mass, so the source of the anomalies were called "mascons ," short for mass concentrations, but their origin was unclear. The surprising finding was that the mascons were located in the lunar basins (lunar maria), the regions in which mass should be deficient. Possible reasons were iron -rich lava filling the areas, or large concentrations of mass just below the surface.[4,6]

The GRAIL lunar gravity mapping was done by a team with members from five US universities , one French university, NASA's Goddard Space Flight Center , and two research institutes . Maria Zuber , a Professor of Geophysics in the MIT Department of Earth, Atmospheric and Planetary Sciences and MIT's vice president for research, is GRAIL's principal investigator . Jay Melosh , Distinguished Professor in Purdue University's Department of Earth, Atmospheric, and Planetary Sciences , was the lead author of the Science paper.

This mapping was done using microwave range data between two spacecraft , GRAIL A and GRAIL B , renamed Ebb and Flow. These craft were placed in a nearly circular orbit passing over the poles of the Moon at low altitude (about 34 miles , or 55 kilometers ). As these craft passed over areas of greater and lesser gravity, their separation changed slightly.[4-5] Such range data allowed a determination of the local lunar gravity over the entire lunar sphere, as seen in the figure.

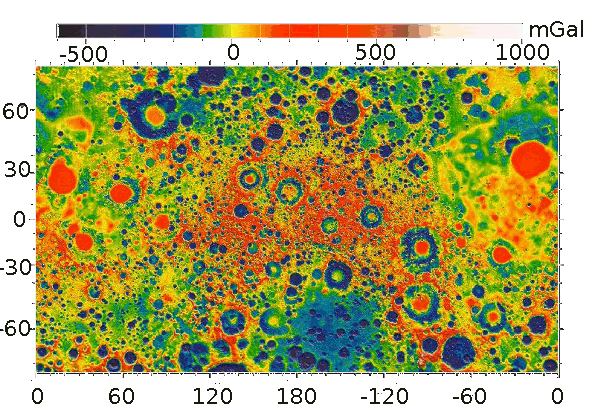

Mercator projection of lunar gravity

The gravity field of the Moon, as determined by GRAIL. The map is a Mercator projection . (NASA/JPL-Caltech/GSFC/MIT image.)

As can be seen in the map, the mascons look like target patterns with a gravity excess in the center surrounded by a gravity deficit. In many cases, there's a positive outer annulus . This pattern arises from the the process of mascon creation, which starts with crater excavation, collapse of the impact area, and the isostatic adjustment, cooling and contraction of the melted material.[3-5] The asteroid impact doesn't just eject material. It also sends a shock wave into the Moon's interior that brings up dense lunar mantle material to the surface.[6]

Jay Melosh's part of the investigation was to model the process by hydrocodes and finite element analysis . The Purdue team analyzed the Freundlich-Sharonov and Humorum mascon basins, and the simulations precisely matched the gravity observations.[5-6]

Says MIT's Maria Zuber,

"Mascons also have been identified in association with impact basins on Mars and Mercury ... Understanding them on the moon tells us how the largest impacts modified early planetary crusts ."[4]
