Carbyne

August 28, 2013

One of the first things you learn about organic chemistry is the difference between an -ane, an -ene, and an -yne. The "anes," as typified by ethane (CH3-CH3), are molecules with a single bond between carbon atoms ; the "enes," as typified by ethylene (CH2=CH2), are molecules with a double bond between carbon atoms; and the "ynes," as typified by ethyne (CH≡CH, also called acetylene , as if things weren't confusing enough), are molecules with a triple bond between carbon atoms.

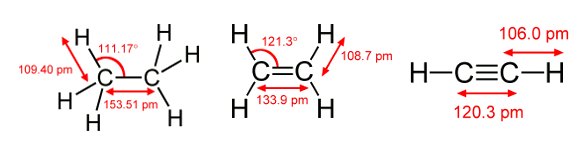

Carbon bonding in ethane, ethylene and acetylene (ethyne)

Carbon bonding in ethane, ethylene and acetylene (ethyne). Source images, from Wikimedia Commons, ethane, ethylene, and acetylene (ethyne).

As expected, a greater number of bonds results in a higher bond-dissociation energy , as the following table shows.

Bond Type	Bond Energy (kJ /mole )	Bond Length (pm)
Single (-ane)	347	154
Double (-ene)	611	134
Triple (-yne)	839	120

One thing we notice is that the energy is not linear with bond number; otherwise, we would expect the bond-dissociation energy for a carbon-carbon triple bond to be 1041 kJ/mole, which is 24% higher than the actual value. This triple bond can be considered to be the combination of a sigma bond (369 kJ/mole) and two pi bonds (268 and 202 kJ/mole).

Carbon nanotubes and graphene are composed of bonded carbon atoms. Although there are just single bonds connecting their carbon atoms, the regular arrangement of the atoms offers considerable strength in the assemblage. As a result, the Young's modulus of single-walled carbon nanotubes is about a terapascal (TPa), and that of single layer graphene is 2.4 ± 0.4 TPa.[1]

An interesting alternative to carbon nanotubes might be braided strings of carbon atoms bonded together as in acetylene. This linear acetylenic carbon , is a carbon allotrope . It's also called carbyne. The structure of such a carbon chain would be written as ...C≡C-C≡C-C≡C..., although the reality would have all carbons joined by an sp hybridized bond , as shown in the figure.

sp hybridized bonds of a carbon atom.

Illustration of sp hybridized bonds of a carbon atom.

(Modified Wikimedia Commons image by J.F. Melero.)

Carbyne is estimated to have a Young's modulus that's many times that of diamond . The Young's modulus of diamond is 1.22 TPa. The spectroscopic signature for carbyne has been detected in interstellar space , and there have been attempts to synthesize carbyne.[2-3] The products of most such syntheses appear to have been nanotubes, instead, so there's no consensus on whether there has been a synthesis. One believable synthesis was for a 44-atom chain in solution .[3] Some chemists have calculated that carbyne is very unstable, and two strands of carbyne would explosively react if they contacted each other.[3]

Betting on the idea that carbyne will eventually be synthesized in useful quantities, scientists from Rice University (Houston, Texas) have performed first-principles computer calculations of the properties of carbyne. Their calculations confirm the excellent mechanical properties of this material . One interesting property is the transition of bond type under tensile stress , as shown in the figure.

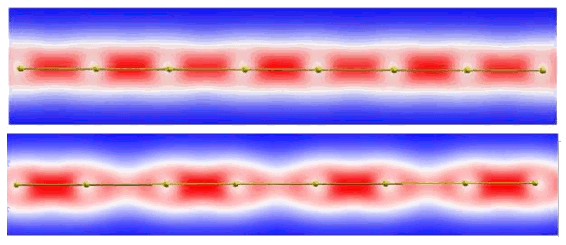

Carbyne under tensile stress.

The carbyne bonds do not merely stretch under tensile strain . There's a transition to an alternating bond type that's more like an alternation of single and double bonds than acetylene hybrid bonds. (Fig. 1 of ref. 2, via the arXiv Preprint Server.)[2]

Bending stress is better handled, as shown in the electron density plot of the next figure.

Bent carbyne.

Electron density plot of a string of carbyne atoms bent into a small radius .

(Fig. 2a of ref. 2, via the arXiv Preprint Server.)[2]

The following table summarizes the calculated properties of carbyne.

Property Value

Thickness (2r) 77.2 pm

Young's modulus 32.71 TPa

Shear modulus 11.8 TPa

Poisson's ratio 0.386

persistence length (300 K ) 14 nm

The persistence length is a measure of the rigidity of a piece of fiber. This is the length scale over which portions of the fiber all point in the same direction. For comparison, the Young's modulus of diamond and graphene are 1.22 TPa and 2.4 TPa, respectively, and the shear modulus of diamond is 0.5 TPa. Carbyne outperforms these materials by more than an order of magnitude .

One other interesting finding is the potentially large change in bandgap with tension, changing from 3.2 eV to 4.4 eV with 10% strain.[2] It's also nice to know that carbyne isn't self-annihilating, since the calculations show a 0.6 eV barrier for cross-linking of carbyne strings. This energy is equivalent to an equilibrium cross-linking of once per 17 atoms, or 2.2 nm .[2]
