Georg Ohm and Ohm's Law

March 15, 2013

Tomorrow, March 16, is the anniversary of the birth of Georg Simon Ohm, discoverer of what's now called Ohm's law. Ohm, who was born on March 16, 1789, was a German high school teacher when he performed the experiments demonstrating that the electrical voltage E across a conductor increases in proportion to the applied current I. The proportionality constant is the resistance R, now measured in ohms; viz,
E = I R
Ohm may have inherited his facility for experiment from his father, who was a locksmith. Ohm's family valued education, and his younger brother, Martin, became a mathematician. Ohm studied mathematics on his own while he worked as a private tutor in Neuchâtel. His private study paid off. Quitting Switzerland, Ohm entered the University of Erlangen, and he received a Ph.D. in mathematics on October 25, 1811, just a few months after his arrival.
Graphical Ohm's law Ohm's law illustrated graphically as Georg Ohm equals Alessandro Volta over André-Marie Ampère.

(Source images, Ohm, Volta, and Ampère, from Wikimedia Commons.)
Ohm served as a lecturer in mathematics at the university for a time at very little pay. Short on cash, he re-purposed himself as a high school mathematics teacher in Bavaria, and he taught briefly at two public schools. Ohm knew this was not the life for which he had hoped, so he spent time writing a geometry textbook, the manuscript of which he sent to King Frederick Wilhelm III of Prussia.

The king was suitably impressed, and this landed Ohm a better teaching position at the Jesuit Gymnasium of Cologne (another high school) in the Fall of 1817. At this school, Ohm taught physics as well as mathematics, and the school had an excellent physics laboratory for the time. It was here that Ohm did his electrical experiments, which were summarized in the 1827 paper, "The Galvanic Circuit Investigated Mathematically," (Die galvanishe Kette, mathematisch bearbeitet).

Publication of what's now called "Ohm's Law" probably assisted Ohm in gaining a position at the Polytechnic School of Nuremberg in 1833, and his becoming a professor of experimental physics at the University of Munich in 1852.

The resistor is one of the three (perhaps four) fundamental electrical components, the others being the capacitor and inductor. The figure below shows the electrical symbol for a resistor, and how to calculate the equivalent resistance when resistors are connected in series and parallel.

Ohm's law, series and parallel resistors
Ohm's law illustrated using conventional electronic component symbols (left), and the equivalent resistance of series (middle) and parallel (right) combinations of resistors. (Illustration by the author using Inkscape.)

The series and parallel resistance formulas are easy to understand when you relate them to the fundamental physics of resistance. The resistance R of a uniform rod or bar of a material with resistivity ρ, cross-sectional area A and length L, as shown in the figure, is just
R = ρ (L/A)

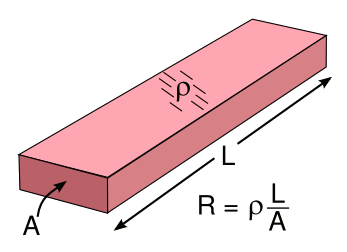

Resistance formula for a conductorResistance formula for a conductor with resistivity, ρ.

(Illustration by the author using Inkscape.)

You can see that when you put resistors in series, you add the virtual lengths of their internal conductors, so the series formula is obvious. In the parallel case, you're adding the cross-sectional areas, so the math is a little different. You're adding the conductance, which is the reciprocal of the resistance.

All this is textbook stuff, which is exciting to just a few students. There are combinations of resistors which are much more interesting, such as the infinite lattice of resistors shown in the figure. Whenever the idea of infinity enters a problem, it becomes more interesting and often more complex.

Infinite 2D lattice of resistors
An infinite lattice of resistors in two dimensions. Measurements between some nodes will give an experimental value of pi (π). (Illustration by the author using Inkscape.)

A very nice analysis of this infinite array of resistors was published fifteen years ago,[1] and there have been quite a few papers on this lattice array, similar lattice arrays, and cubic arrays.[1-8]

The following table shows the calculated resistance values, in units of the identical resistance values in the array, between the origin (0,0) and some nearby lattice nodes.[1] The origin, of course, can be anywhere, since this is an infinite array.

(i,j)R  (i,j)R
0,00  2,2(8/3π)
0,11/2  3,3(46/15π)
1,01/2  4,4(352/105π)
1,12/π  5,5(1126/315π)

The interesting thing here is that some nodes will give rational numbers, and other nodes will give values containing π, an irrational, transcendental number.
