A Single-Atom Transistor

February 24, 2012

Moore's Law, the putative trend that the density of transistors on the highest density integrated circuits doubles about every two years, has been very good to us. We wouldn't have our magical smartphones without it, and it's been the acknowledged roadmap of the semiconductor industry. One problem with Moore's law is that it predicts single atom transistors by 2020. As if that isn't difficult enough, what happens after 2020?

In a previous article (Ohm's Law at the Atomic Scale, January 13, 2012), I reviewed the work by a multinational research team led by scientists at the University of New South Wales. This research team demonstrated the scaling of Ohm's law to a conductor size just four atoms wide and one atom tall.[1-3] These conductive wires were made by first covering a silicon surface with hydrogen, and then using the tip of a scanning tunneling microscope (STM) to remove the hydrogen in the shape of the wire.

The silicon surface was then doped with phosphorus atoms by exposure to phosphine (PH₃). Phosphorus is an n-type dopant that increases the conductivity of silicon, and in these conductors the dopant density was high, with phosphorus atoms sitting less than a nanometer from each other.

The phosphorus atoms will only bind to those silicon regions for which the hydrogen has been removed. These doped traces were encased with other silicon atoms to protect them and produce phosphorous-doped silicon wires, just four atoms wide and one atom tall, with a very low resistivity (~0.3 milliohm-centimeters).

Now, this technology has been used to produce a transistor based on a single phosphorus atom.[4-11] The use of a single atom of phosphorus-31 (³¹P) opens the possibility that such devices could form the basis of a quantum computer. An isolated dopant atom has a long coherence time of quantum states.[4]

In theory, the two possible nuclear spin states of ³¹P could serve as a "qbit," a quantum information state that represents many values, not just a "1" or "0." [7-8] The trick to quantum computation is that there can be interaction between qbits for computation only if the location of the qbits is precisely known. Placing single atoms precisely in a crystal lattice solves this problem.[10]

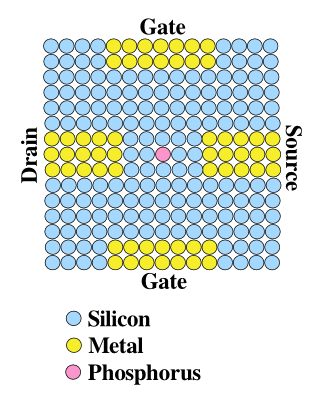

Layout of the single atom transistor. The phosphorus atom sits between the metal gate, source and drain electrodes. There are actually more than a hundred rows of silicon atoms between the gate electrodes and the phosphorus atom, and tens of rows between the drain and source electrodes and the phosphorus atom. Illustration by the author, rendered in Inkscape. [5]

The transistor layout, as shown in the above figure, consists of the phosphorus atom surrounded by electrodes.[5] The source and drain metalizations are separated by a 108 nanometer gap, while the gate electrodes have a 20 nanometer gap between them. [10]

The phosphorus atom can be placed into three possible charge states; namely, a zero-electron state, a one-electron state, and a two-electron state. Not surprisingly because of its quantum mechanical nature, this device will only operate at very low temperatures (<1 kelvin). It is only at these temperatures that the electrons are confined to their proper channels.[9-10]

This is not the first single atom transistor. A single atom transistor was first demonstrated in 2002, but reproducibility for single atom devices has been a problem. Generally, many devices were needed to be made to find a single working device.[6-7] The STM fabrication method, although laborious, routinely produces working devices.[6]

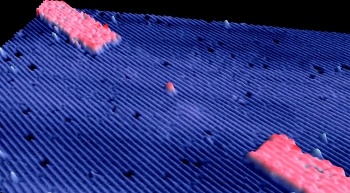

Scanning tunneling micrograph of a portion of a single-atom transistor. (Screen capture from a YouTube video).[11]

This device demonstrates the fundamental limit of transistor technology. The industry appears to be at a tipping point between the old, top-down approach of photolithography, and the newer, bottom-up approaches that build electronic devices atom-by-atom. What's needed now are improved tools that can facilitate the atom-by-atom approach.
