Phyllotaxis

April 4, 2012

Scientists attempt to find order in every aspect of nature , although they sometimes fool themselves. There's the example of Bode's Law that I wrote about in a previous article (Planetary System Formation, March 21, 2012). Bode's Law (sometimes called the Titius-Bode Law) appeared to accurately formulate the distance of the planets from the Sun . Although there was no physical basis for the law, it worked very well for the planets of antiquity . However, it failed miserably when data for Neptune and Pluto were added.

The Fibonacci numbers are a mathematical sequence whose rule is easily stated. You begin with the numbers 0 and 1; then the subsequent numbers are defined as the sum of the previous two in the sequence. Thus,

0
1
1 = 1 + 0
2 = 1 + 1
3 = 2 + 1
5 = 3 + 2, etc.

The Fibonacci numbers are known as sequence A000045 in the On-Line Encyclopedia of Integer Sequences . Such a low catalog number might be indicative of a special place in mathematics, although sequence A000004 , which is all zeros, might be used as a counterexample .

The reason that the Fibonacci numbers are interesting to scientists is that certain things in nature appear to conform to this sequence. One idealized example is the number of pairs of rabbits in each generation , as shown in the figure. In practice, however, it's unlikely that rabbit populations would evolve this way.

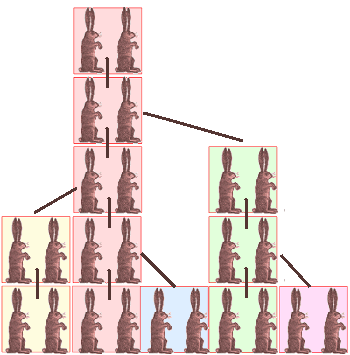

Fibonacci rabbits sequence

Fibonacci Rabbits

If a male-female pair of rabbits reaches sexual maturity in one generation and subsequently has one male and one female progeny in each generation, the number of pairs of rabbits in each generation will follow the Fibonacci sequence if all rabbits remain alive.

(Illustration by author. Original rabbit image from Wikimedia Commons).

The Fibonacci sequence seems to occur in the spiral pattern of seeds in a sunflower and the number of petals in a flower . Most daisies have 34, 55, or 89 petals, all Fibonacci numbers, and it's been suggested that the reason for the rarity of four-leaf clovers is because four isn't a Fibonacci number. Since the arrangement of leaves on a plant stem is called phyllotaxis , this term has been used to describe the arrangement of any element of the plant, such as the seeds and petals.

Something this general must have an explanation, and the concept was of interest to Alan Turing , who also wrote an article about how the leopard gets its spots .[1] Last year, the American Association for the Advancement of Science (AAAS) held a session on "Growth and Form in Mathematics, Physics , and Biology ," during its annual meeting.[2] This session was a commemoration of the 150th anniversary of the birth of mathematical biologist , D'Arcy Thompson .

Alan Newell of the University of Arizona (not to be confused with another Allen Newell known to many computer scientists ) has proposed a physical explanation for this occurrence of the Fibonacci sequence in nature. This work was described in a paper presented at that AAAS session, and in previous publications[3-8]. The explanation is based on the mechanics of materials .

Galileo was one of the first to propose that the size and shape of organisms is governed by mechanics. Galileo's square-cube law , stated in his Two New Sciences (1638), is the observation that as the size of an object increases, the volume grows at a faster rate than its surface area . More importantly, in mechanics, the volume of a body grows faster than the cross-sectional area of members that support the body against gravity . A giant can't have human -style feet. It would need elephant -like feet.

D'Arcy Thompson elaborated on the idea that organisms must still obey the laws of physics in his 1917 book, "On Growth and Form ." This book, which contains many examples of phyllotaxis, is more descriptive than explanatory, but it does make a connection between physics and biology.

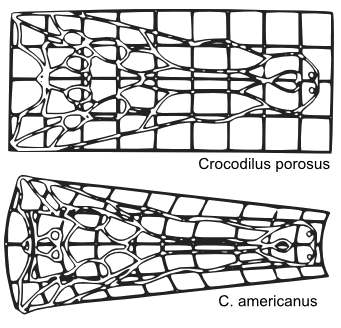

Crocodile transformation

In this portion of an illustration from D'Arcy Thompson's book, a Crocodylus porosus (saltwater crocodile) head can be transformed into an american crocodile (Crocodylus americanus, or Crocodylus acutus) head by a simple geometrical transformation.

(Source image, Wikimedia Commons).

Newell, along with his colleagues and students, has been looking at the stress-relieving affect of buckling as the cause of the Fibonacci patterns in nature. Buckling drives the development of the patterns, since it affects subsequent growth. The buckling, which causes ridge formation on surfaces, happens when the growth layer intrudes into softer tissue as a means of reducing stress .[7]

As we find in nearly every process, the path of least energy is the one that's taken.[5] Says Newell,

"Of all possible shapes you can have, what nature picked minimizes the energy in the plant." [7]

Such a least-energy path leads to the Fibonacci patterns.[5]

As I've often remarked, theory is one thing, but you can't beat a good experiment . It's always been stated that sunflower seeds follow a Fibonacci pattern, but the last experimental test of that, done in 1938 on 319 specimens, was inconclusive.[9] To do an analysis on a larger sample size , scientists at the University of Manchester have teamed with the Manchester Museum of Science and Industry and the Manchester Science Festival to have people grow more than 3,000 sunflowers for analysis. The results of the analysis will be announced at the festival in October, 2012.[9]

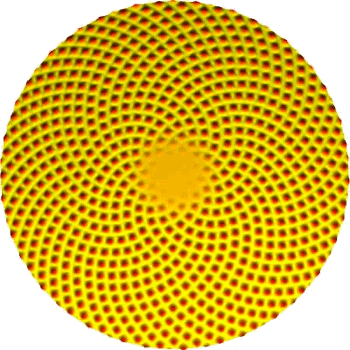

Computer-generated sunflower pattern

Computer-generated sunflower pattern based on a mathematical model developed at the University of Arizona.

(University of Arizona image by Matt Pennybacker).
