Mystifying Metamaterials
May 31, 2012 Every student has faced this problem. Just when they think they understand something, the teacher piles on something new. You've just mastered subtraction, and now you need to learn how to subtract negative numbers. Materials scientists have a rich panoply of materials they try to understand, and now metamaterials have been thrust upon us. It makes you want to sell real estate, instead.[1] Actually, we should be joyful. Once a climber reaches the top of Everest, what's he to do? Try it again, climbing backwards; or, climbing on one foot? As long as new materials are found, there will always be a need for scientists to understand them. As I once told my post-doctoral mentor, Ed Wallace, if materials were easy to understand, they wouldn't pay us so much money to research them. geometrical structure, rather than their specific composition. They are more important today because of our ability to shape material on the nanoscale. As an example, the layered structure pictured below was formed from alternating layers of silver and magnesium fluoride into which were etched nanoscale windows. Whereas natural materials will exhibit a positive refractive index, this "fishnet" metamaterial has a negative refractive index for wavelengths as short as 1500 nm. Nanoscale fabrication is important in this case, since the dimensions of this material need to be smaller than the wavelength of light for the negative refraction to occur. superlenses with resolution beyond the diffraction limit. I've often remarked how science seems to pace a few decades behind science fiction. There are numerous examples, such as those from the Jules Verne novels. The Klingon cloaking technology on Star Trek seemed fanciful just a few decades ago, but there has been progress in making metamaterial cloaking devices. The idea behind cloaking is simple. You just need to bend light around an object such that the background becomes the foreground. Taking a back seat to all this optical buzz are some unique mechanical properties of some metamaterials. I wrote about auxetic materials in a previous article (Auxetics, May 13, 2011). Auxetic materials exhibit a negative Poisson's ratio. Poisson's ratio is a mechanical constant of materials that's usually symbolized by the Greek letter, ν. It's the measure of how much the material will shrink in a plane when you pull on it. It's essentially the ratio of the contraction in the x- or y-direction to the extension in the z-direction. Since materials normally get thinner as we pull on them, a negative sign added to make the ratio positive. Poisson's ratio is usually about 0.3 for most metals. Cork's Poisson's ratio is about zero, which makes it ideal for a bottle stopper application. Cork doesn't expand when pushed into the bottle neck, so it doesn't jam. Rubber has far different mechanical properties, since its Poisson's ratio is about 0.5. Auxetic materials were first described in a 1987 paper published in Science.[3] Auxetics are a prime example of how structure trumps composition as a material property. Auxetics are actually more like simple machines than materials, per se, since, on a local level, they operate according to the model shown in the figure.

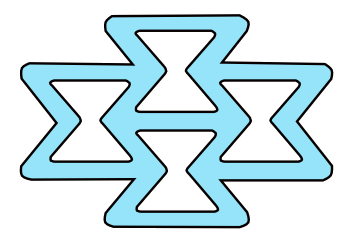

 | Model of an auxetic material. Pulling on the right and left edges will make the material grow in the up-down direction. (Rendered by the author using Inkscape). |
 |

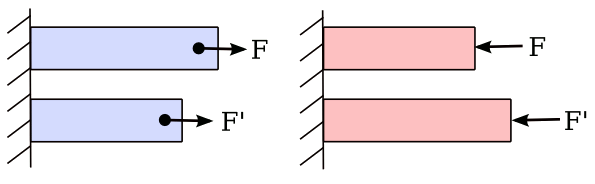

| Poke it with a stick. Negative compressibility materials become shorter when pulled, and lengthen when pushed. In each case, force F' is larger than force F. (Rendered by the author using Inkscape). |
"This research shows that new materials, in fact, can be created to exhibit a phase transition during which the material undergoes contraction when tensioned or expansion when pressured... We refer to such transformations as 'negative compressibility transitions.'"[5]Zachary G. Nicolaou, who was an undergraduate student at the time of the study, but is now a graduate student at Caltech, and Motter looked at materials as networks of interacting particles, similar to what can be seen in the auxetic material model, in their design of the materials that exhibit such negative compressibility transitions.[5] Network effects are sometimes counterintuitive, and these include an increase in electrical current when an internal conductor is removed; or, how adding another highway will increase, rather than decrease, travel time.[5] This latter effect, known as Braess's paradox, was discovered about half a decade ago by the German mathematician, Dietrich Braess. A complementary effect, when approached from a strain, rather than a stress, perspective, is force amplification. In this case, a small change in deformation will lead to a large increase in response force.[5-6] This property can be for actuators, and for microelectromechanical systems. This research was supported by the Northwestern University Materials Research Science and Engineering Center and the National Science Foundation.[5]
References:
- One of my graduate school colleagues started a camera store after getting his Ph.D.. Another of my colleagues, an expert in electron analytical techniques, now sells real estate.
- OBITUARY: William E. (Ed) Wallace, University Times (University of Pittsburgh), vol. 37, no. 6 (November 11, 2004).
- Roderic Lakes, "Foam structures with a negative Poisson's ratio", Science, vol. 235, no. 4792 (February 27, 1987), pp. 1038-1040.
- Jason Valentine, Shuang Zhang, Thomas Zentgraf, Erick Ulin-Avila, Dentcho A. Genov, Guy Bartal and Xiang Zhang, "Three-dimensional optical metamaterial with a negative refractive index," Nature, vol. 455, no. 7211 (September 18, 2008), pp. 376-379.
- Megan Fellman, "Mystifying Materials," Northwestern University Press Release, May 23, 2012.
- Zachary G. Nicolaou and Adilson E. Motter, "Mechanical metamaterials with negative compressibility transitions," Nature Materials, Advanced Online Publication, May 20, 2012, DOI:10.1038/nmat3331
- Roderic Lakes, "Foam structures with a negative Poisson's ratio", Science, vol. 235, no. 4792 (February 27, 1987), pp. 1038-1040.
