Nano Copper Catalyst

April 16, 2012

Platinum is a great catalyst. It has an active surface that allows chemicals to overcome the activation energy of reactions, but it doesn't readily react with other chemicals, so its surface is always available. As an example, one of my laboratory processes contained molten lead oxide in a platinum crucible, and the platinum was not corroded. Automotive catalytic converters mostly use platinum as a catalyst.

Oxidation, such as the rusting of iron, is a problem for most metals, but one of my favorite thermodynamics databooks [1] lists no platinum oxides. It does, however, list the two copper oxides, cuprous oxide (Cu2O) and cupric oxide (CuO). An example of copper oxidation and corrosion might be found in your pocket as a penny. Copper reacts with the oxygen in the air to form a protective, brown oxide; but it also reacts with sulfides and other chemicals in the air, or on our hands, to form a corrosion product called a patina.

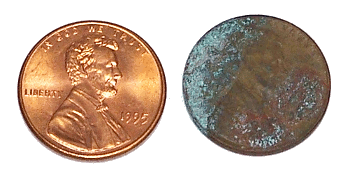

a 1995 and 1944 US pennyA 1995 US Penny (left), and a corroded 1944 US penny (right).

(Photo by author)

Copper is used a catalyst, but its catalytic capacity is usually diminished over time by reactions with other chemicals that reduce the number of catalytically active copper atoms at the metal surface. The degradation process is called poisoning, and I actually used poisoning to good advantage in preventing the decomposition of some intermetallic hydrides.[2] Copper would be a fine catalyst for many reactions if poisoning could be controlled.

The reason why certain catalysts work better for some reactions than others is not well known, so it's usually best to stick with those that work, rather than trying to invent something new. Copper is a good catalyst for conversion of carbon dioxide into hydrocarbons, such as methane. Since we're all wondering what we can do with the carbon dioxide thrown off in electrical generation, a good copper catalyst might be a way to get rid of the carbon dioxide and produce fuel at the same time.[3] I reviewed one process for doing this using solar-heated ceria ceramic in a previous article (Solar Ceria, July 7, 2011).

A team of MIT scientists has decided to tackle the copper catalyst poisoning problem using nanotechnology. The team consists of Kimberly Hamad-Schifferli, an associate professor of mechanical engineering and biological engineering, Yang Shao-Horn, an MIT Associate Professor of Mechanical Engineering, postdoctoral associate, Zichuan Xu, and undergraduate, Erica Lai.[3]

Since previous research has shown that copper combined with gold in bulk form prevented copper oxidation, the team decided to investigate nanoscale copper in gold.[3] Going to nanoscale has the added benefit that the surface area of the catalyst is increased for the same volume, potentially increasing reaction rate and yield. The nanoparticles were made by evaporating a mixture of gold and copper salts, then reducing this to produce a metal powder by heating.[3]

Electron micrograph of hybrid gold/copper nanoparticlesElectron micrograph of hybrid gold/copper nanoparticles.

Note the extremely small scale of the copper particles.

(MIT image by Zhichuan Xu).

The MIT team found that not that only a small quantity of gold was required for the copper to resist oxidation. Electrodes for electrochemical cells were coated with the nanoscale copper-gold powder.[3] The carbon dioxide reaction was performed by bubbling the gas into an electrochemical cell containing such electrodes.

The applied voltage that was needed to attain a steady current in such cells, which is indicative of a sustained reaction, was found to be much smaller for the nanocatalyst than for pure copper and gold.[3] If the catalyst were poisoned, the current at the reaction voltage would decrease as active sites were removed. Says Hamad-Schifferli,
"You normally have to put a lot of energy into converting carbon dioxide into something useful... We demonstrated hybrid copper-gold nanoparticles are much more stable, and have the potential to lower the energy you need for the reaction."[3]

Of course, an industrial-scale process of this sort for carbon dioxide sequestration would require a lot of gold. It would be essential to go to the spreadsheets and calculate the net benefit of this method of carbon sequestration, considering its fuel production capability and its potential for long life. After all, the gold isn't consumed, so its value is still there. Since there's a societal problem of people stealing copper, we had better add in the cost of armed guards!

A paper describing the catalyst will appear in the journal, Chemical Communications. The research was funded by the National Science Foundation.[3]

References:

  1. C. E. Wicks and F. E. Block, "Thermodynamic Properties of 65 Elements - Their Oxides, Halides, Carbides, and Nitrides," U. S. Bureau of Mines Bulletin 605, U. S. Government Printing Office (1963); Online version, via The University of North Texas Library; PDF version, via the University of Hawaii. My favorite is the the NIST-JANAF Thermochemical Tables, Fourth Edition, Monograph No. 9 (Part I and Part II, M.W. Chase, Jr., Editor), available from the American Institute of Physics, 2 Huntington Quadrangle, Melville, NY 11747-4502. A print version can be found on amazon, but NIST has an online database.
  2. D.M. Gualtieri, K.S.V.L. Narasimhan and T. Takeshita, "Control of the Hydrogen Absorption and Desorption of Rare Earth Intermetallic Compounds," J. Appl. Phys., vol. 47, no. 8 (August 1, 1976), pp. 3432-3435.
  3. Jennifer Chu, "Hybrid copper-gold nanoparticles convert CO2," MIT Press Release, April 11, 2012.
  4. Web site of the Hamad-Schifferli Group, Mechanical and Biological Engineering, MIT.
