Bonding Teflon®

September 21, 2012

Teflon® is the trademark for polytetrafluoroethylene (PTFE), known for its utility as a high temperature non-stick coating for things such as cookware . PTFE is non-stick because it has a low surface energy . Everyone's first question about PTFE coated cookware is, how do they get it to stick to the metal pan?

The PTFE is mechanically held to the metal by first creating a roughened metal surface, either by sandblasting , or by flame spraying a rough metal coating. The PTFE layer interlocks with the pores in the rough surface, so it's mechanically fixed. Not very elegant in a chemist's viewpoint, but it works just the same.

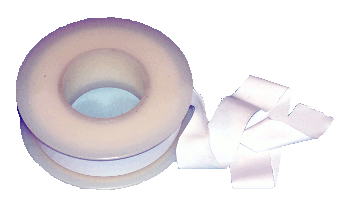

PTFE tape

Plumber's helper.

A common use of PTFE is as a thread sealant and lubricant for piping .

(Photo by author).

There's a way to bond PTFE articles, such as sheets, to other materials by chemical modification of the PTFE surface to be bonded. The idea is to strip away the fluorine atoms , leaving a carbon layer that's bondable with an adhesive . This is difficult, since the carbon-fluorine bond is extremely strong. Fluorine is highly electronegative , and the electronegativity difference between carbon and fluorine is 1.5. The highly ionic character of this bond leads to a high bond-dissociation energy .

Sodium , with an electronegativity of slightly less than one, is reactive enough to pull fluorine away from PTFE; that is, it will etch the material to make a bondable surface. There are various sodium chemistries to accomplish this, some of which are more friendly than others,[1] but other methods for PTFE bonding are always welcome.

A team of scientists from the Institute for Materials Science , the Otto-Diels-Institute for Organic Chemistry , and the Department of Functional Morphology and Biomechanics at the University of Kiel (Kiel, Germany) have developed a novel method by which they bonded Teflon with another slippery material, cross-linked poly(dimethylsiloxane), a silicone adhesive . In a microscale-nanoscale variation of the mechanical bonding process, they used small, tetrapod crystals of zinc oxide as a bonding agent (see figure). [2-4]

Figure caption

The zinc oxide crystals are tetrapods , as this scanning electron micrograph shows.

(Image by Xin Jin, Copyright Christian-Albrechts-Universität zu Kiel).[3]

Their extremely simple process involves sprinkling these crystals between sheets of the polymers , then heating gently at 100 °C for 40 minutes. This bond is reasonably strong, since a peeling force of 200 N /m is required to peel the layers apart.[2,4] This is about the force needed to unstick household cellophane tape .[2-3]

Not surprisingly, the tetrapodal shape of the crystals is an ideal shape for such interlocking.[4] Pulling on one arm of the tetrapod causes the other three arms to dig into the material more deeply.[3]

Figure caption

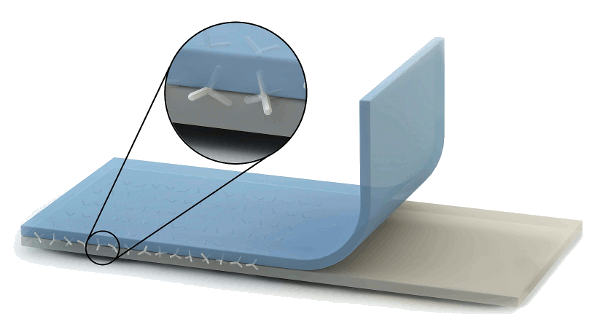

Conceptional drawing of a cross-linked poly(dimethylsiloxane) layer (blue) bonded to PTFE. (Image by Jan Strüben, Copyright Christian-Albrechts-Universität zu Kiel).[3]

"...as far as we could verify, no one has ever made silicone and Teflon stick to each other at all”, says study co-author Lars Heepe, a graduate student at Kiel University who measured the adhesion.[3]

The PTFE-poly(dimethylsiloxane) couple was an extreme test of the process. Says Professor Rainer Adelung , a materials scientist who worked with the research team to develop this process, "If the nano staples make even extreme polymers like Teflon and silicone stick to each other, they can join all kinds of other plastic materials."[3]

Since this is a mechanical adhesion, and zinc oxide is a benign material, this would be a biocompatible process suitable for medical implants .[3] It may be possible also to switch the adhesion on and off using light .[3]
