Norman J. Woodland, Co-Inventor of the Barcode

December 17, 2012

Barcodes have been with us so long that it's hard to remember a time without them. They've made shopping more pleasant for both customers and clerks . My two novels have barcodes on their back covers , the registration for which cost me a little bit of money; but, now I'm a "real" author , at least as far as the Books In Print database is concerned.

Barcodes for my books, Mother Wode (top) and The Alchemists of Mars (bottom). These are in serial order, the last digit being a checksum digit .

Manipulating barcode images is somewhat tricky.

I tried to reduce the size of these for this example, but the interpolation method caused some of the white area to be filled as gray. This would be a problem for a barcode scanner .

I remember an article published in a popular science magazine shortly after barcodes became ubiquitous. The scientist author expressed amazement that his receipt contained so much information about the products he bought. He wondered how so much information could be contained in a small patch of thin and thick lines. The contained code is just a record number in a database from which all other information is pulled.

The barcode was invented by Norman J. Woodland and Bernard Silver and patented in 1952.[1] As a good example of an idea before its time, the patent made just $15,000 for its inventors , and we can see why. The invention was demonstrated using vacuum tubes and a non-laser light source . The principal embodiment had barcoded items travelling on a transparent conveyor belt . Maintenance of such a belt would be problematic.

Barcodes became feasible after other technologies advanced. The transistor was invented in 1947, and was not commercially viable until many years later. The visible red light helium-neon laser was invented in 1962. The real key to a functional barcode system, an inexpensive computer , wasn't realized until about 1975. Mechanical engineer , Norman J. Woodland, who teamed with his electrical engineer school mate, Bernard Silver , to invent the barcode, died on December 9, 2012, at age 91.

Norman Woodland was born on September 6, 1921, in Atlantic City . His learning Morse Code as a Boy Scout was a factor in his subsequent idea for the barcode.[2] He began studies at The Drexel Institute of Technology (now, Drexel University ), but these were interrupted by World War II . During the war, Woodland worked at Oak Ridge National Laboratory as a technician on the Manhattan Project .[2,3] After the war, he received his bachelor's degree from Drexel in 1947.[2] He eventually continued his studies, receiving a master's degree from Syracuse University .[2-3]

One interesting anecdote from Woodland's early life was an invention he conceived as an undergraduate . He devised a method for recording fifteen tracks of music on 35-mm film . This was an advance in the current state-of-the-art in "elevator music " systems. His father, however, was convinced that the elevator music industry was controlled by organized crime , and discouraged his son from commercializing his invention.[2] This early venture into an optical -mechanical system may have aided his invention of barcodes.[2]

Bernard Silver became interested in product identification technologies when a supermarket executive visited Drexel and introduced the problem to a dean . Silver interested Woodland in the project, and their first idea was to use fluorescent inks excited by ultraviolet light .[2] Woodland became so interested in the problem that he quit graduate school at Drezel to work full time on the problem. In the winter of 1948-1949, Woodland stayed with his grandparents in Miami Beach .[2]

Woodland had his Eureka moment while relaxing at the beach. In an article in the Smithsonian magazine , as quoted by the BBC and The New York Times , Woodland explained,

"I poked my four fingers into the sand and for whatever reason - I didn’t know - I pulled my hand toward me and drew four lines. I said: 'Golly! Now I have four lines, and they could be wide lines and narrow lines instead of dots and dashes... Only seconds later, I took my four fingers - they were still in the sand - and I swept them around into a full circle."[2,4]

The circular scheme had the advantage that the codes could be read at any orientation, and that scheme was the one that was patented. Among the various difficulties with the original idea was that a practical implementation needed a 500 watt light.[2] The patent was eventually sold to Philco for $15,000,[2,4] but Woodland kept pitching the idea at IBM , where he worked from 1951-1987.[2,4] It was likely the expiration of the original patent, along with technological advances, that finally encouraged IBM to further develop barcodes.

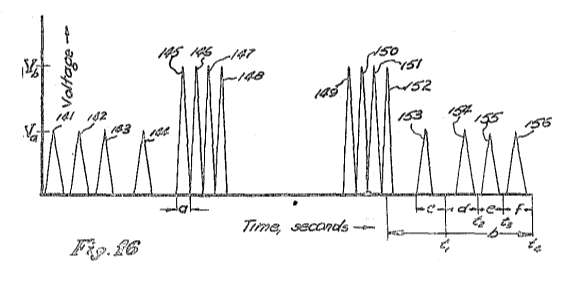

Figure sixteen of US Patent No. 2,612,994, "Classifying Apparatus And Method," by Norman J. Woodland and Bernard Silver, October 7, 1952. This shows the temporal readout of thin and thick bars. (Via Google Patents).

In the early 1970s, the code was standardized in its present rectangular format, and the first product scanned, at a supermarket in Troy, Ohio , was a $0.67 pack of Wrigley's chewing gum .[2-5] One interesting anecdote from those early days was that wine manufacturers refused to place the ugly marking on their artistic labels.[5]

Woodland received the National Medal of Technology and Innovation in 1992.[2,3] Woodland, along with Silver, who died in 1963, were inducted into the National Inventors Hall of Fame in 2011.[2-4] According to the agency that administers the Universal Product Code (UPC), there are more than five million registered barcodes worldwide.[4,5]
