Tikalon Blog by Dev Gualtieri

"Anti" Gravity

February 8, 2012

CPT was the brand name of one of the first commercial word processing systems. These were sold by the company, Cassette Powered Typewriting, which began by offering cassette data storage systems for the IBM Selectric Typewriter . When these were first introduced into our offices in the early 1980s, CPT meant something altogether different to me. CPT is physicist's shorthand for a combined symmetry involving charge and parity inversion and time reversal.

Everything seems to obey CPT, although there is evidence that antimatter might behave differently. A principal argument that antimatter is not symmetrical with ordinary matter is that our universe seems to be composed entirely of ordinary matter, for no apparent reason. That's reason enough for physicists to investigate how closely antiparticles match their ordinary matter counterparts.

One major problem with experiments to study the complementarity between the matter and antimatter worlds is that antimatter combines with normal matter to produce photons in a mutual annihilation. This very efficient mass-energy conversion is what fuels the antimatter drive on many fictional spacecraft .

Gravitation measurements are the most difficult measurements to make, since gravity is such a weak force, and it's usually masked by stronger electromagnetic forces . The repulsive electrical force between two electrons is nearly 10⁴³ times stronger than their gravitational attraction. In a previous article (What Falls Up, June 10, 2008), I wrote about the planning stage of the AEGIS experiment at CERN. AEGIS, short for "Antimatter Experiment: Gravity, Interferometry, Spectroscopy," is designed to produce antihydrogen atoms, made as a combination of antiprotons and positrons , and measure their gravitational acceleration. Antihydrogen atoms are neutral, so electromagnetic forces are not an issue.

I went to high school with two girls named Pam.

Here's a PAM of a different sort. Paul Adrien Maurice Dirac , who validated the idea of antimatter in a 1928 paper.

(Cambridge University, Cavendish Laboratory, photograph, circa 1930, via Wikimedia Commons).

The idea of AEGIS is to measure the small vertical deflection of an antihydrogen beam. Since the particles would be traveling at a few hundred meters per second , the deflection over a meter's travel would be just a few micrometers . A Moiré deflectometer would detect such a small change. The Moiré pattern is obtained by sending the antihydrogen beam through a series of diffraction gratings .[1]

How important is this experiment ? It's not even known whether antiparticles may possess antigravity , which would be really interesting.[2] Many experiments in search of a "fifth force " may have ruled this out. These so-called Eötvös experiments , named after their originator, Loránd Eötvös , look for differences between the inertial mass and gravitational mass of objects, so they're a test of the equivalence principle . The objects studied would have a different number of virtual antimatter particles , and the study results do not indicate any anomalous forces.[3]

An important part of such an experiment is the creation of a sufficient quantity of antihydrogen that's stable for an extended period. Scientists took the first step in November, 2010, when they were able to confine 38 atoms of antihydrogen for 172 milliseconds.[6-7] They followed up with a report in June, 2012, of the capture of 309 antihydrogen atoms for up to 1,000 seconds.[NP] Importantly, these atoms were contained long enough for many of them to reach their ground state , a necessary condition for an accurate measurement in the planned experiment.[6]

The containment field, which held these atoms and prevented them from contacting the walls of the containment vessel and annihilating themselves, was an array of eight magnetic poles . You can probably call this a double quadrupole . Although the atoms are neutral, they are affected by a magnetic field because of their small magnetic moment . The antihydrogen is made in the trap when antiprotons entering it are combined with positrons. This type of trap will only work if the antiprotons entering it are moving very slowly. In temperature terms, they are at about 0.5 kelvin .[6]

The AEGIS approach is the most direct method of ascertaining the gravitational properties of antimatter, but its not the only method. Positronium is another neutral combination of particles, although it's an exotic atom composed of an electron and a positron in orbit about each other (Yes, this is the classical picture. The quantum reality is quite different).

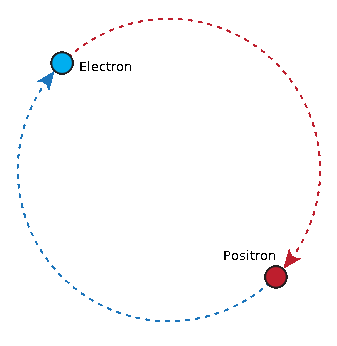

An "atom" of positronium.

Positronium is composed of an electron and a positron in orbit about each other. It usually has a very short lifetime, but it exists longer when in an excited state.

(Image by Harry Mustoe-Playfair, via Wikimedia Commons).

Physicists David Cassidy , Allen Mills and Harry Tom of the Department of Physics and Astronomy , University of California (Riverside, California), along with graduate student Tomu H. Hisakado, have been generating excited states of positronium known as Rydberg positronium.[9] The excitation is done by incoherent laser excitation to principal quantum numbers up to 25.[8]

In these Rydberg states, the electron and positron are very weakly bound, so the exotic atom's lifetime is longer by a factor of 10-100.[9] That's still not long enough for meaningful experiments of gravitational force using free fall , so the UC team is trying to add additional angular momentum to the ensemble to boost lifetime by a factor of 100,000. This would give a positronium lifetime of about 10 milliseconds to allow a beam of these atoms a reasonable deflection under gravity.[9]

The University of California-Riverside team is working to complete this next task in their gravity experiment this summer.[9] Perhaps this team of four will get results before the considerable number of scientists on the AEGIS team. The University of California-Riverside research is supported by the National Science Foundation and the U.S. Air Force Research Office .[9]
