Transistors in Three Dimensions

May 10, 2011

As urban developers have learned, when space is obtained at a premium, you build up, not out. The first integrated circuits were planar, with one device element being laid onto another. In the 1970s, a first attempt was made to transcend this two-dimensionality by etching V-shaped grooves in silicon wafers.

This vertical metal oxide semiconductor, or VMOS, structure allows a greater current-handling capability. Crystallography is an enabler for this process, since etching a (100) silicon surface will produce the grooves by exposing (111) crystal planes that are at an angle of 54.74° with the (100) surface. Potassium hydroxide is the usual etchant.

Figure captionThe VMOS transistor structure. The grooves are (111) planes of silicon exposed by etching of the (100) wafer surface.

(Via Wikimedia Commons)

Although there are grooves in the VMOS architecture, everything is backfilled, and it looks like a planer device. I still think it qualifies as the first three-dimensional transistor architecture, and I'm sure that its inventors thought that it was an extremely unique and ambitious approach.

In 2002, thirty years after VMOS, Intel Corporation produced its first examples of a different type of three dimensional field effect transistor (FET), called tri-gate. Now, Intel has announced that it has commercialized this advance in field effect transistor technology that took the idea of building structures in the vertical dimension to new heights (pun intended). Not pulling any punches, Intel is producing these transistors with the extremely small gate width of 22 nm.[1-5]

Figure captionFigure caption
Figure captionClockwise from upper left, a planar transistor, a single-fin tri-gate transistor, and a multi-fin tri-gate transistor.

(Intel Corp, Ref. 5)

Intel's tri-gate architecture produces FETs that operate at lower voltage and have lower leakage, properties that make them useful for mobile computing devices. These 22 nm tri-gate transistors have up to a 37 percent performance increase over the 32 nm planar transistors of Intel's previous process. In a tri-gate FET, the gate covers three surfaces of a silicon fin, as seen in the figures. This allows an FET "on" state with lower resistance, and an FET "off" state with high isolation.

Micrograph of multi-fin tri-gate FETsYes, it's real.

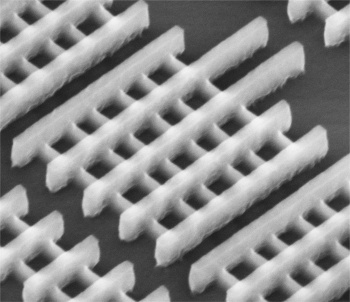

Micrograph of multi-fin tri-gate FETs.

(Intel Corp., Ref. 5)

Intel co-founder, Gordon E. Moore of the eponymous Moore's Law, had this to say about the tri-gate process:[6]
"For years we have seen limits to how small transistors can get... This change in the basic structure is a truly revolutionary approach, and one that should allow Moore's Law, and the historic pace of innovation, to continue."

Now for my idea of a more energy-efficient transistor architecture. My Fourtran architecture (not to be confused with Fortran), is a four-dimensional approach that has transistors appear only when needed, and disappear when they are no longer in use. Best transistor architecture, ever!
