Phase Change Conductance

June 21, 2011

In a previous article (Nano Memory, September 30, 2010), I wrote about memory devices being developed from the reversible change in electrical conductance that some materials have when they change phase between amorphous and crystalline states. This effect was discovered by Stanford R. Ovshinsky, and it's often called The Ovonic effect.[1] This effect has become important as a memory technology known as phase-change memory.

Materials that exhibit this effect are quite exotic, and also quite toxic. An important class of such materials is the chalcogenide glasses, specifically selenides and tellurides, such as Ge₂Sb₂Te₅ (called GST). The amorphous state of these compounds has low conductivity, and the crystalline state has high conductivity.

Application of proper voltages switches between these phases in a few tens of nanoseconds. This is remarkable, since these transitions involve an actual heating of the material. Such rapid transitions are possible, since the amount of material is very small, and it's in intimate contact with a heat-sinking substrate.

There are other ways to change the conductance of a material, although not through a change in the intrinsic electrical properties of the material itself, but the conductance path through crystalline grains of the material, a process called percolation.[3-4] I wrote in two previous articles[5-6] how conductance in such materials can be changed by mechanical stress, an effect called piezoresistance.

One way to model electrical percolation in two-dimensions. Particles are modeled as resistive links to nearest neighbors. Fig. 1 of ref. 4, via arXiv

An historical application of piezoresistance is the carbon button microphone, which uses a discovery of Thomas Edison that sound pressure can change the resistance of carbon particles placed between conducting plates. Sound pressure causes contact between the loose particles and a resultant current could flow.

Some composite materials consisting of a polymer matrix loaded with conducting particles change resistance also with applied stress. Aerogels composed of multi-walled carbon nanotubes, a material that could be called "frozen smoke," allow reversible compression to just 5% of their volume. The conductivity of these aerogels is highly sensitive to applied pressure.[6]

The phase change most familiar to people is the melting of ice and freezing of water. Pure water has very little conductivity, so such a phase change isn't reflected in a useful change in conductance. There is, however, a large change in volume, and a huge change in dielectric constant. The dielectric constant of water is about 80, and that of ice only 3.2 at radio frequencies.[7]

The freezing transition has been put to good use by scientists at MIT who have used the phase separation of a two-phase mixture to effect a large increase in both electrical and thermal conductivity upon freezing.[8-9] They were able to effect a change in electrical conductivity by a factor of more than a hundred; and thermal conductivity by a factor of more than three.

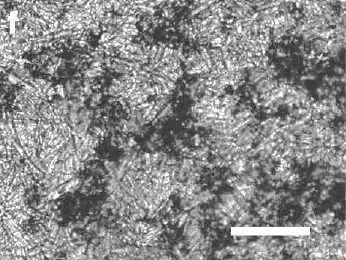

Fig. 1(f) from ref. 7. An image of a network of graphite particles formed by freezing a graphite suspension in hexane. Graphite clusters are black, and the needle-like structure is the frozen hexane. The scale bar is 200 μm.

Image licensed by the authors of ref. 9 under a Creative Commons Attribution-NonCommercial-Share Alike 3.0 Unported License.

Their material was a suspension of graphite flakes, 0.2% by volume, in hexane (C₆H₁₄). The researchers found that this suspension was maintained for at least three months. As shown in the figure above, the frozen hexane pushes the graphite flakes together, forming a percolation network.

When hexane freezes, it forms needle-like structures that not only segregate the graphite flakes, but also push against them to increase their contact areas and decrease resistance. Hexane is not the most desirable solvent, since its melting point is quite low (-95 °C), but the MIT team has demonstrated the concept with solvents that have a melting point near room temperature.[8]

One possible application of this material system would be automatically resetting fuses. This research was led by Gang Chen, Director of the MIT Pappalardo Micro and Nano Engineering Laboratories. A U.S. patent application has been filed on this invention, "Thermal and/or electrical conductivity control in suspensions," Application No. 12/720,382.[9]
