Electricity, Magnetism and Morality

September 28, 2011

Many scientific discoveries have been proposed as palliatives or cures for various diseases. As soon as electricity was discovered, it was being used for medicinal purposes. Benjamin Franklin tried electricity as a cure for paralysis .[1] Franklin's attempt had somewhat of a scientific basis in light of the work of Luigi Galvani , who used electricity to animate dead frog legs.

Portrait of Luigi Galvani (1737-1798) by an unknown artist at the Museo di Palazzo Poggi, Bologna, Italy

Galvani's discovery was a side-effect of his misguided search for frog testicles. He thought that they were located in the legs. He published his electrical results in his 1791 paper, De viribus electricitatis in motu musculari commentarius (Commentary on the Force of Electricity on Muscular Motion).

(Via Wikimedia Commons).

John Wesley (1704-1791), an English clergyman, used electricity as a medical treatment among the poor, and he published his research in the 1760 book, "Desideratum, or Electricity made Plain and Useful by a Lover of Mankind and of Common Sense." This work lists thirty-seven ailments that he found to be treatable by electricity, including "St. Anthony's Fire ... Consumption ... Fits , Ganglions , Gout , Gravel ... King's Evil , Leprosy ... Shingles ... Surfeit ... (and) Toothache ."[2]

Wesley had a few unkind words to say about physicians and pharmacists . He claimed that they would reject electrical treatment, since they were making too much money by their current medical practices, so they would eschew such a cheap therapy.[2]

Where there's electricity, there's magnetism , as shown by James Clerk Maxwell in 1864, but the supposed medical benefits of magnetism predate even Maxwell's discovery. Magnetism was prescribed medically in ancient Greece , and during the Middle Ages .[3] Medical magnetic appliances such as magnetic insoles for foot pain and magnetic bracelets for arthritis are presently a $300 million/year business.[3]

There are, of course, legitimate uses of magnetism in medicine. Foremost among these is magnetic resonance imaging (MRI), which provides the best possible contrast for imaging soft body tissues . This results from its sensing the local concentration of hydrogen via the presence of its ¹H nucleus .

MRI has the benefit that no ionizing radiation is involved, as for X-ray and CAT scans. There are, however, high magnetic fields involved; but, MRI has been practiced since the early 1980s with no apparent ill effects .

How is magnetism used in MRI? Nuclei with an odd numbers of spins , of which ¹H is the simplest example, will precess in an applied magnetic field in analogy to a gyroscope in a gravitational field . This is because the nucleus resembles a spinning charge , which is like an electric current , so a magnetic field is produced. A radio frequency field can be tuned to resonance with this precession, and the lifetime of this resonant state can be measured to produce image contrast.[4]

The resonant frequency for hydrogen is a function of the magnetic field, and it's given by the Larmor equation . It's essentially 42.57 MHz /Tesla , a Tesla being 10,000 Gauss . If you have a uniform magnetic field source from a magnet with a large pole piece, it's possible to demonstrate proton magnetic resonance with very simple circuitry (see figure).[5]

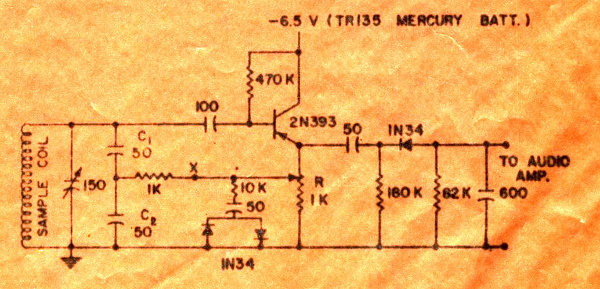

A simple transistor marginal oscillator for proton magnetic resonance. I built a modified version of this circuit as an undergraduate project in 1969. A dilute copper sulfate solution in a test tube is inserted into the coil. The copper salt speeds relaxation of the proton resonance and enhances signal strength. The resonance is calculated to be about 12.77 MHz at 3 kG. (Fig. 1 from Ref. 5, via an aged thermofax copy).

Development of technologies such as MRI has produced equipment that allows immersion of human subjects into magnetic fields of many Tesla. Advances in instrumentation have always enabled new scientific discoveries. The invention of the telescope showed the universe to be a different place than first imagined, and magnetic equipment developed for magnetic resonance imaging has shown the possibility of mind control in humans.[6-11]

A 2010 paper in the Proceedings of the National Academy of Sciences by scientists from , Harvard University , MIT and the http://en.wikipedia.org/wiki/Beth_Israel_Deaconess_Medical_Center Beth Israel Deaconess Medical Center reports that magnetic stimulation of the right temporo-parietal junction of the brain affects moral judgment. The presumed mechanism is that the magnetic field impedes the normal firing of brain cells.[6-8]

The effect is only present when the magnetic field is applied - it isn't permanent. Experiments showed that the magnetic stimulation caused subjects to view morally ambiguous situations in a more favorable light. Study participants who were subjected to the focused magnetic field judged "attempted harms as less morally forbidden and more morally permissible."[6] Liane Young of MIT, a coauthor of the study, is quoted by the BBC as saying that "to be able to apply a magnetic field to a specific brain region and change people's moral judgments is really astonishing."[7]

Electricity, Magnetism and Morality
