Just as French was the "lingua franca" of law and diplomacy in past years, Latin and Greek are used by physicians and medical researchers so they can be understood internationally. Few people today are classical scholars, but many people recognize quite a few of the Greek words in the medical lexicon.

When confronted by any word containing "cyt," we know that it concerns cells. It derives from the Greek word, κυτος, transliterated as kytos, that means "a hollow." The hollow aspect was readily apparent to Robert Hooke when he observed the structure of cork under a microscope (see figure). The shapes reminded him of the small rooms, called cells, where monks lived.

Image of cork cells from Robert Hooke's MicrographiaDrawing of cork cells, as viewed by Robert Hooke under a microscope.

"...Our microscope informs us that the substance of Cork is altogether fill'd with Air, and that the Air is perfectly enclosed in little Boxes or Cells..."[1]

From Hooke's Micrographia, via Wikimedia Commons.

The number of blood cells of various types could only be counted by use of a microscope prior to the invention of the modern method of cellular analysis by the electrical engineer, Wallace Coulter.[2] Coulter's eponymous Coulter counter was a method of electrically classifying particles suspended in a conductive solution as they flowed through a thin tube from one chamber to another (see figure).

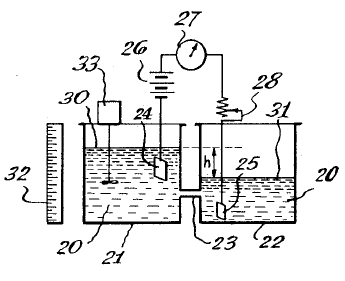

Figure one of US Patent No. 2,656,508Figure one of US Patent No. 2,656,508, "Means For Counting Particles Suspended In A Fluid," by Wallace H. Coulter, October 20, 1953.

(via Google Patents).

Using blood cells as an example, a dilute mixture of blood in an isotonic solution flows through a thin tube from one reservoir to another. The isotonic solution is electrically conductive, so a current will flow between an electrode in one reservoir to an electrode in the other.

When a blood cell enters the tube, it blocks a fraction of the current flow in the tube. Since the reduction in current depends on the cross sectional area of the cell, the cell size can be inferred, and different cell types can be counted. Thus, a red blood cell having a diameter of about 6-8 μm and thickness of 2 μm can be distinguished from the smaller platelets (about 2-3 μm diameter) and the larger white blood cells (7-21 μm diameter).

Although Coulter's original detection scheme used electrical current for detection, modern flow cytometers have many modern detection technologies available. Optical techniques are the most common, and this leads to sensitive analyses when fluorescent tags can be attached to cells.

It's even possible to sort cells. Charged droplets containing individual cells are steered one way, or another, by electric fields that are controlled by the sensed cellular size.[3] In a previous article, I wrote about a variation of the Coulter method for sequencing DNA.[4]

Nowadays, the electronic circuitry for flow cytometry so easy to implement that any engineer experienced in embedded systems design can roll his own quite cheaply. Things are easier still if you can append your device to a common electronic device. That's what researchers at UCLA's Henry Samueli School of Engineering and Applied Science have done in converting a cellphone to a flow cytometer at minimal expense.[4-5]

The team, led by Aydogan Ozcan, a professor of electrical engineering and bioengineering at UCLA, fabricated this eighteen gram device from a handful of inexpensive parts that included a simple lens ($3), a plastic color filter ($1), two light-emitting diodes ($0.30/each), some optofluidic piping, and batteries.[5] The optofluidic components are a syringe pump and a disposable microfluidic channel through which the cells flow. The device is for use with fluorescently tagged cells, and it uses the cellphone camera as the optical detector.[4-5]

Cytometry attachment for cellphoneCytometry attachment for a cellphone. The cellphone camera is used to image the flowing cells for analysis.

(UCLA Image/Aydogan Ozcan).[5]

The cellphone camera records video of the cells as they stream by, and computer analysis counts the labeled cells. The spatial resolution is two μm, and the system was tested by measuring the volumetric density of human white blood cells (7-21 μm diameter).[4-5] Says Ozcan,
"We have more than 5 billion cell phone subscribers around the world today, and because of this, cell phones can now play a central role in telemedicine applications... Our research group has already created a very nice set of tools, including cell phone microscopes, that can potentially replace most of the advanced instruments used currently in laboratories."[5]

The group's web site shows other innovative analysis equipment.[6] The cellphone cytometer is intended for such uses as monitoring the health of HIV patients and examining water-quality in poorer countries.[4-5] The cellphone cytometer study was funded by the National Institutes of Health, the National Science Foundation, the Office of Naval Research, the Bill & Melinda Gates Foundation and the the Vodafone Americas Foundation.[5]
