Camouflage

October 4, 2011

Peek-a-boo is a game that mothers play with their babies. The mother hides her face, then she reveals herself to the baby, saying, "Peekaboo! I see you!" Babies, and probably mothers, think this is great fun.

The reason for this is that before eight or nine months of age, children have not developed the mental construct called object permanence . The same response can be evoked using a barrier between the child and a toy. Would a pail over a stuffed bear be called a "bearrier?"

Hiding physical objects from adults, and now ubiquitous surveillance equipment, is somewhat more difficult. One simple method is described in Edgar Allan Poe's "The Purloined Letter ," in which a letter is hidden in plain sight. The letter wasn't discovered, because everyone was expecting it to be cleverly concealed.

One variation on the hidden-in-plain-sight method is to interpose an object into a large collection of similar objects, like a rare coin in a pile of ordinary coins; or, a computer file in the midst of many other files. There's a scene in the "I, Robot" film in which a fugitive robot hides itself in a room full of other robots.

The Russian military has explored unusual decoys in the form of inflatable simulacra of large military equipment.[1-2] These blowup, full-sized decoys are manufactured by a company named Rusbal (for Russkiye Ballony), a company of about fifty employees known mainly for inflatable children's castles. It's located in Khotkovo , about sixty kilometers northeast of Moscow . Rusbal makes blowup decoys of S-300 rocket launchers , T-80 and T-72 tanks, field radar sets, and several fighter aircraft .

Special metallic fabric is used so that the decoys have a believable signature on radar, satellite sensors and thermal imaging equipment .These decoys are, of course. much less expensive than the real items. If an enemy commits a million dollar missile to destroy such a decoy, the advantage is definitely on the side of the decoy force.

Nature has perfected the art of hiding, by camouflage , in many species . Beyond the usual method of coloration to blend into the surroundings, as exemplified by the hackneyed example of the chameleon , more unusual optical effects are used. One of these is counter-illumination .

In counterillumination, an organism emits light that hides its silhouette against a background. In the case of fish, the background would be the light streaming into the water from above. The counterilluminating light is produced either by the organism itself, or by bacteria living on the organism. This same "visual signature suppression" technique has proven useful in camouflage of aircraft .

Experiments during World War II showed that the range at which aircraft could be detected visually was reduced from twelve to two miles when lights were fitted to their forward surfaces.[3] A similar approach has been applied to an unmanned aerial vehicle (UAV). Electroluminescent surfaces supplied the counterillumination.[3]

A optical effect similar to counterillumination is countershading , which has the advantage of not needing power for lights. Abbott Handerson Thayer wrote about countershading, which is usually observed as the white underbelly of animals, in 1892. This has the effect of camouflaging the animals against the white sky, above. Like other natural phenomenon, this principle has proven useful in military camouflage . Thayer himself obtained a patent on it for ships' camouflage in 1902.[4]

Of course, the thing we think of when we hear the term, "camouflage," is clothing. Perhaps it's because camouflage has become a fashion pattern. The US Marine Corps has a patented camouflage pattern, called MARPAT , that seems to be inspired by fractals (see figure).[4] It supposedly mimics the textures found in the natural environment better than the traditional splotch designs. The design may also be just an accident of too many cooks working a single broth . The patent has eight listed inventors!

MARPAT Camouflage Pattern

The only way I could have fewer readers is if I used this as the background image for this blog.

The MARPAT Marine pattern camouflage design.

(Luisa DeMorais Santos, et al., "Camouflage U.S. Marine corps utility uniform: pattern, fabric, and design," US Patent No. 6,805,957, Oct 19, 2004).[5]

The vast array of sensing technologies, such as hyperspectral imaging , that are available today are making camouflage extremely difficult. You need to be invisible not just in the visible and radar spectra, but at infrared and millimeter wavelengths as well.[6] Heavy military vehicles give off a lot of heat, and even infantrymen have a recognizable thermal signature.

The later can be shielded by stealth garments that block infrared signatures. Ceno Technologies (Buffalo, New York) has developed an effective heat shielding material for garments. These so-called cenospheres are small, hollow spheres of aluminum and silica that can be incorporated into fabrics.[6] Since we're mindful of thermodynamics , we know that the heat needs to go somewhere, and therein lies the problem with such shielding technologies.

Static camouflage patterns have given way adaptive camouflage in which the person or object is covered with arrays of light emitters that adjust color and brightness in response to input from cameras that image the local environment.[6] Recently, BAE Systems has announced an adaptive infrared skin for vehicles that can also produce the thermal signature of decoy objects. This technology, called Adaptiv, can also make a tank look like a cow or car when viewed in the infrared.[7-8]

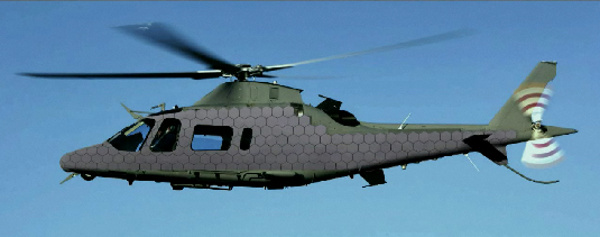

BAE Systems ADAPTIV Camouflage

BAE Systems ADAPTIV camouflage, as pictured on a helicopter . (Screen capture from a BAE Systems promotional video).[9]

Few details of the Adaptiv technology have been released, aside from photographs of the hexagonal pixels that form the imaging skin, but I suspect that these pixels contain thermoelectric modules that allow both electrical heating and cooling. BAE says that the system consumes very little power , possibly because the pixels have low thermal mass .[8-9]

It's claimed that the pixels also offer armour protection, which seems to be incompatible with the low thermal mass idea.[8] A composite structure with a thermal barrier would offer both qualities. A patent has been filed for the technology, so we'll need to wait for publication to learn the secrets.
