Bob Pease

June 22, 2011

In today's world of digital electronics , there are few analog circuit designers . The world lost one of its best last Saturday (June 18, 2011) when Robert A. (Bob) Pease died in a single car traffic accident at age 70 as he was returning from a memorial service for a friend and companion analog designer, Jim Williams .[1] Since Pease was the author of a book on defensive driving,[2] I suspect that the cause of the accident wasn't unsafe driving on Bob's part, but a medical condition.[3] Not surprisingly, there have been many articles and many a reminiscence about Bob.[4-7]

In a previous article (Unsafe at Any Speed, February 06, 2007), I mentioned how Lev Landau , Eugene (Gene) Shoemaker , Seymour Cray , Mary Ward , Rudolf Karl Luneburg , William Shockley , Arnold Sommerfeld , Max von Laue and John Schrieffer all had unfortunate incidents involving automobiles . Such safety problems, and the physical/environmental/political problems with fuel supply, make you wonder why we still persist in using such machines; or, more importantly, why more effort isn't devoted to better modes of transportation.

Pease earned a BS degree in electrical engineering from MIT in 1961 and he joined George A. Philbrick Researches , producer of the first mass-produced operational amplifier , the K2-W . In those days, of course, most electronics involved vacuum tubes , and it was quite a feat designing a temperature-stable DC amplifier .

The usual trick was to use a mechanical chopper to turn the DC signal into an alternating current for amplification by a simpler amplifier and then synchronously detecting it on the other end. I have several examples of these soup-can-sized choppers in my collection, and they do not lend themselves to small, inexpensive devices. Philbrick's designs did not involve mechanical choppers. Click here for the K2-W schematic diagram.

Bob was hired at Philbrick to bring operational amplifiers into the solid state era, albeit with discrete transistors and other discrete components. After honing his skills at Philbrick, Bob joined National Semiconductor Corporation in 1976 as a designer of monolithic analog circuits. His designs at National included the LM331 voltage to frequency converter ; and the LM337 adjustable voltage regulator , which sold more than 135 million pieces.[4] He served also as an applications engineer who designed reference circuits around National's chips, and when he retired in 2009, he held the title of staff scientist .

Robert A. Pease in Czar costume.

Bob Pease as the Czar of bandgap reference circuits.

(Via the Bob Pease Web Site at National Semiconductor)

The reason that Bob was so widely known in electrical engineering circles is his monthly column, called "Pease Porridge," in Electronic Design Magazine . He started his column while he was at National, and he continued it after his retirement. Bob's column passed along a few analog circuit tricks, but it was also an eclectic mix of his favorite topics that included hiking and automotive tips. Richard Gawel, one of his editors, writes that "Sometimes I would expect a treatise on getting a better signal out of an analog-to-digital converter, and instead I'd get something on organizational systems for your refrigerator."[6] Bob also responded to reader's questions.

Bob and I exchanged emails on three topics over the years. Bob was, as they say, "customer-focused," and he thought that products should be the primary preoccupation of every industrial engineer. One of my emails suggested that you wouldn't have any new products if your company put too much emphasis on products and not enough on some ivory tower thinking. Bob, in his usual, pull-no-punches, style, didn't subscribe to my philosophy.

When Bob wrote about scraping a file across an audio amplifier input,[9] I told him about my discovery in sixth grade when I wired a file to large battery and connected the other battery terminal through an inductor to a wire lead. When I scraped the wire lead on the file, sparks would fly! Bob replied that " We didn't do much CONSTRUCTIVE design, back in the 8th grade. We didn't have many good parts - - like big inductors."

Then there was a trick that he taught me when I suggested that lamp cord would make good speaker wire if the amplifier and loudspeaker were matched to the transmission line impedance of the cord. After all, parallel conductors always have a characteristic impedance. Bob said that special amplifiers and speakers weren't required, since a parallel combination of several conductor pairs of a ribbon cable , which is usually designed to have a 120-ohm impedance, would match anything.

Bob left National in 2009 at the same time the company announced a layoff of 1,725 workers, so there was speculation that this may have been a forced retirement. National announced that Bob had retired, and that he would be retained as a consultant. Pease did not divulge the circumstances of his retirement.[4] Jim Williams, whose memorial service Bob had attended just before he died, said about Bob's retirement, "It's caused a terrific stir because the pope has left Rome. He is an icon across the entire breadth of the analog chip world." [4]

Bob Pease wrote more than 65 magazine articles, 190 magazine columns, and two books. He was a listed inventor on 21 U.S. patents.[8] A figure from one of his patents appears below.

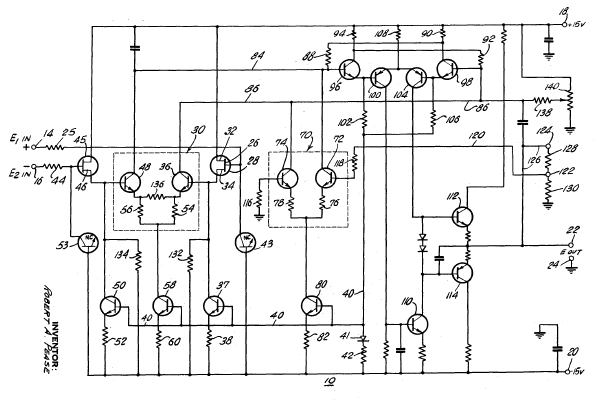

Figure from US Patent No. 3,562,660.

Figure from US Patent No. 3,562,660, "Operational Amplifier," by Robert A. Pease (February 9, 1971).[10]
