Forth

November 10, 2010

The availability of inexpensive computer memory and phenomenal computation speed has enabled a plethora of computer languages. In the beginning there was just machine language, followed closely by its enabler, assembly language. When you just have a few bytes of program memory to work with, you need to have compact programs, often implemented with a few programmer's tricks, to do anything useful. When memory finally allowed compilation of high level languages, such as COBOL and Fortran, the compilers were optimized to produced compact code. More importantly, the compilers were compilers. Interpreted languages were not useful, since the computers were too slow.

After a time,
computer engineering caught up with computer science, which enabled some very useful interpreted languages, such as APL and BASIC. Memory became inexpensive, and soon we had other interpreted languages, like PHP, that contain all the bells and whistles you would ever need; so many, in fact, you don't know half of them until you need them. In my computer history, I've programmed in many languages. I've even flipped switches to put machine language programs into primitive microprocessors, but for general purposes, the evolution of my programming has mirrored the evolution of programming in general. In chronological order, there was Fortran, APL, Pascal, Visual Basic, C, and PHP, with short skirmishes in Lisp and Perl. So many languages were coming into existence in the early days of personal computing that there was even a magazine, Computer Language, devoted to the topic (see figure).

Computer Language Magazine (August 1988) Cover (Click for larger image)

Cover of the August, 1988, issue of Computer Language (vol. 5, no. 8).

Although I haven't programmed in it for twenty years, my favorite language is Forth. Forth was one of the first interpreted languages that could run on a primitive microprocessor. It was very close to the machine, so it was an excellent control language, and I used it to automate an epitaxial crystal growth laboratory. It may have been my early interest in radio astronomy that led me into Forth, since its inventor, Charles H. Moore, developed it at the US National Radio Astronomy Observatory to control radio telescopes. During the 1970s, as co-founder of FORTH, Inc., he ported the language to many different computer architectures. Rockwell International introduced the AIM-65 microcomputer in 1976 with a Forth operating system, and I used this in my early automation system which evolved into an STD-Bus system programmed in Forth.

Although developers have played with its implementation over the years, Forth began as a threaded interpretive language. What this means, in effect, is that each
function or subroutine in a program (called a "word" in Forth) has a pointer associated with it that tells the interpreter the next place to go to execute code. This makes for a fast interpreter. Forth is also a stack language in which the arguments for each function are found on a stack, and the output of a function is left on a stack. In this way, its operation is somewhat like Reverse Polish Notation, so adding two numbers would occur by the code 1 2 + which puts 1 and 2 on the stack and leaves a 3 there for the next operation. This sequence as it appears on a Linux terminal running Gforth appears below. As you can see, Forth is a very reassuring language. It tells you "ok" after a carriage return if what you've typed makes sense. The primitive word, .s, let's you look at the stack without disturbing it.
1 2 + ok
.s <1> 3 ok

One interesting feature of Forth is that Forth is written in Forth. After writing a basic machine language
kernel, Moore was able to write the language in its own syntax, since every "word" that's defined automatically extends the language. This is my favorite Forth feature. In my epitaxy automation system, an operator could just type cool on a terminal, and the furnace would cool down. How fast? If you typed 50 set_rate prior to that, the cool-down would be at 50 degrees an hour. It wasn't a case statement in some program that figured out what cool or set_rate meant. These words were built into the language after I had defined them.

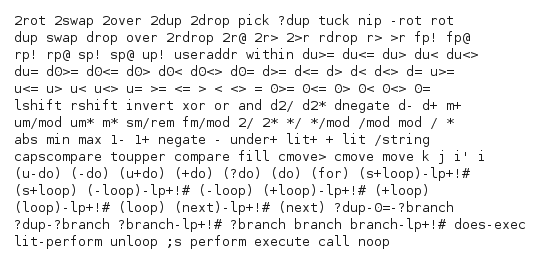

Some primitive words in Forth
Some predefined words in Forth (
Gforth on Ubuntu).

In parting, a few words of advice, depending on your language. Don't forget your colons (Pascal), semicolons (C and many others), and dollar signs (PHP).

References:

  1. Gforth documentation
  2. Linux Goodies - Gforth Review
  3. Forth Stuff, by Don Hopkins
